Syncline House : By Arch11

near Boulder, Colorado, United States
Arch11
Post By:Kitticoon Poopong
Photo © Courtesy of Arch11
Site Conditions
A Pre-Paleozoic fold creates a distinction between the Great Plains and the Rocky Mountain Foothills. Geologically referred to as a syncline, a crease caused by uplift of an ancient sea bed, the fold distinguishes the inhabited plains from mountain park space. The upward plane of the fold presents a landscape described and observed moving sectionally through the house.
Photo © Courtesy of Arch11
Photo © Courtesy of Arch11
The wedge shaped site was bound by numerous restrictive land use limitations: a wetland buffer, height restrictions, a solar access restriction, and multiple setback and easement boundary requirements. A three-dimensional computer model was developed describing the limits of the buildable envelope.
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11
Design Strategy

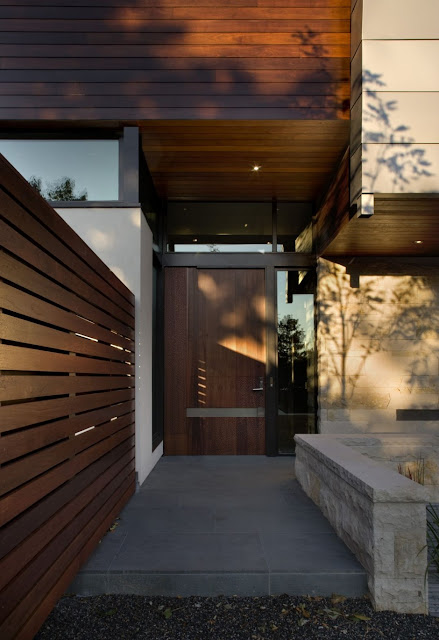

The project was conceived as a threshold between the city and the mountain park.  The client, an entrepreneurial and professional rock climbing couple, requested the house to be “a place where town life can be left behind.”  The house is a threshold between both the  cultural and geologic creases: one between the domestic and the feral, the other between horizontal and vertical. Through a domestic grove of flowering trees, a solid wood wall, broken only by a perpendicular stone wall, opens to the house interior.  Once inside, the stone wall becomes a thickened poche of mechanical and service elements leading through to the west wall of the house, a glazed wall framing the mountain parks.
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

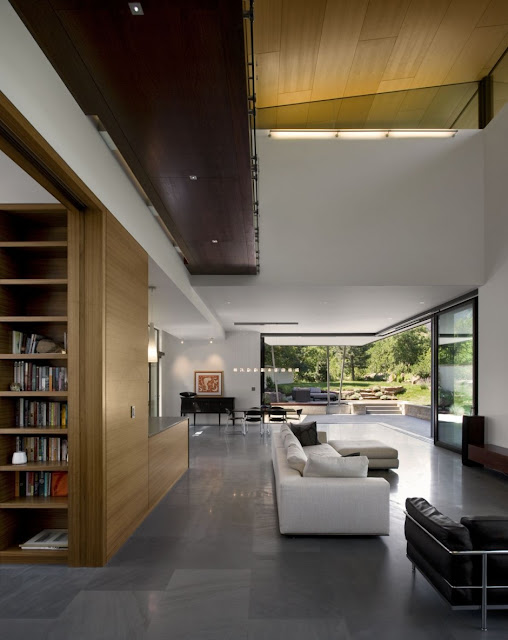

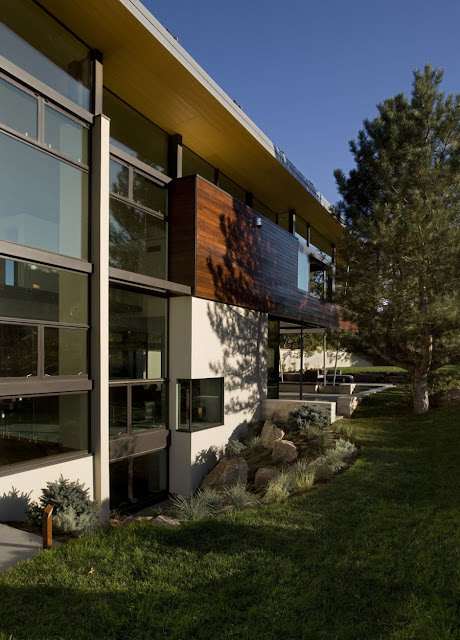

The western wall phenomenally erodes, revealing the landscape with varying degrees of openness. At the entry, framed apertures provide controlled vignettes of the landscape from foreground meadow to high ground cliffs. As the entry opens to the living spaces the apertures transform in scale to reveal the expansive landscape in its entirety.  At the southwest corner thirty feet of glass retracts into the walls, dissolving the boundary between the domestic and the wild;  the living spaces are then bounded only by the uplifted cliffs beyond.  Reciprocally, the native meadow to the west folds onto the garage roof providing easy outdoor access for visiting guests in the house’s guest suite.
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

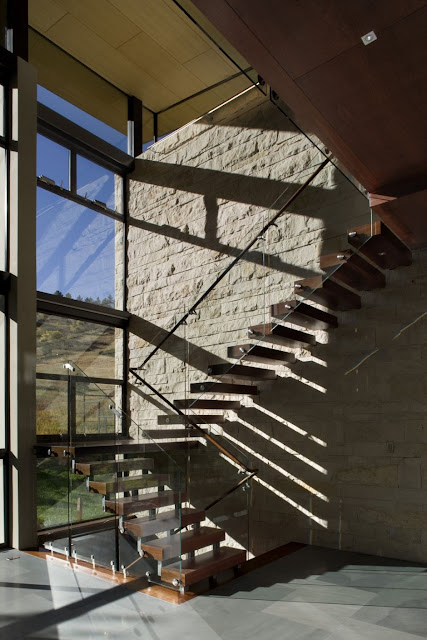

A simple stair cantilevers from the stone wall. Climbing the stairs, the foreground, mid range, and ridge views are sequentially revealed. Experientially scissoring into the landscape and back into the house the stairs connect the mountain park with the house.  The west wall of glazing extends the western room boundaries to the wall of rock and meadows beyond.  The east wall remains closed, allowing only privileged, controlled views and light from the clerestory above.
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11
Building Technology
Working within some of the strictest energy performance codes in the country, the house is designed to be self sustained utilizing  a ground loop heat exchange system that taps into the very bedrock seen at the distant ridge.  A ten kilovolt photo-voltaic electrical system powers pumps, compressors and the domestic electrical needs.
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11
To support an envelope comprised of 50% glazing, a structural steel frame is used in place of traditional stick framing throughout the home.  The western facade was challenged by height and wind exposure.  The thickened wall is a steel brace frame that incorporates vertical vierendeel trusses to resist the 120 mile per hour winds coming down out of the mountains. Additionally, it accommodates the primary vertical mechanical chases.
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11
Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11

Photo © Courtesy of Arch11
location map--drawing Courtesy of Arch11


site plan--drawing Courtesy of Arch11
floor plansdrawing Courtesy of Arch11

views analysis--drawing Courtesy of Arch11

exploded aso--drawing Courtesy of Arch11

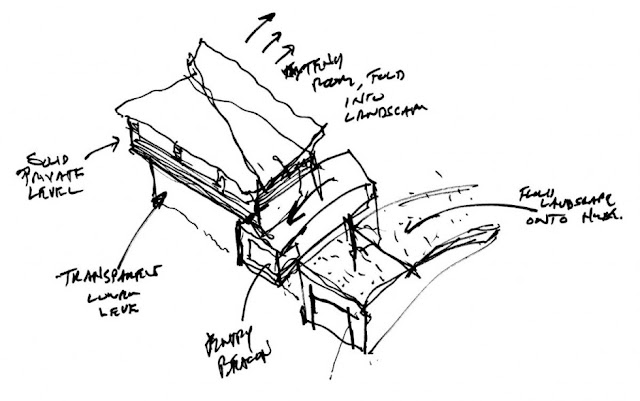

sketch 01--drawing Courtesy of Arch11

sketch 02--drawing Courtesy of Arch11

sketch 03--drawing Courtesy of Arch11
The people
Architects: Arch11
Location: near Boulder, Colorado, United States
Photographs: Courtesy of Arch11
via:contemporist

/
