Tuesday, December 28, 2010

36 The Calls Design Competition : By Aedas Architects

Leeds, United Kingdom
Aedas Architects
Post By:Kitticoon Poopong

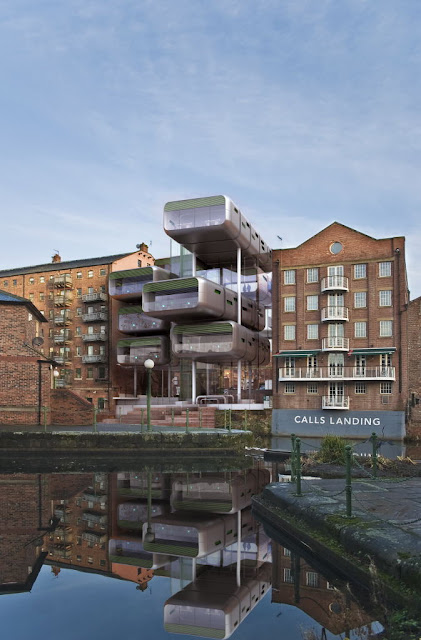

Image © Courtesy of Aedas Architects
Aedas Architects of Leeds proposed an office building with stacked containers for a competition in Leeds, UK. The design is an shortlisted entry for the 36 The Calls architectural competition run by the Architects Journal with developer Citu.
"The River Aire has always played an important role in the daily life and development of Leeds… … Loosely arranging and stacking ship containers between the existing buildings create space for both to breathe."
Aedas Architects

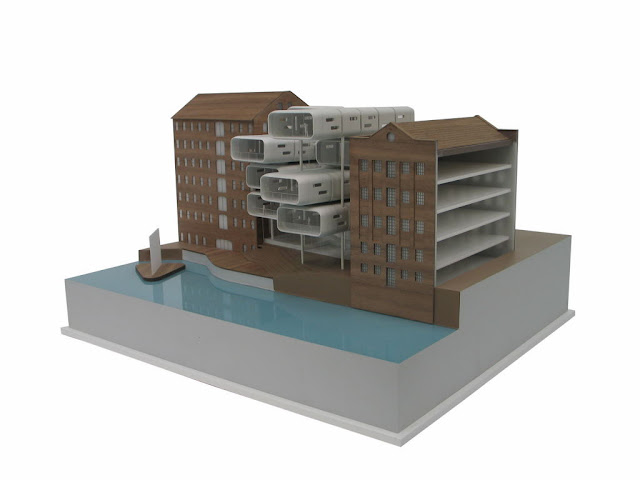

Image © Courtesy of Aedas Architects

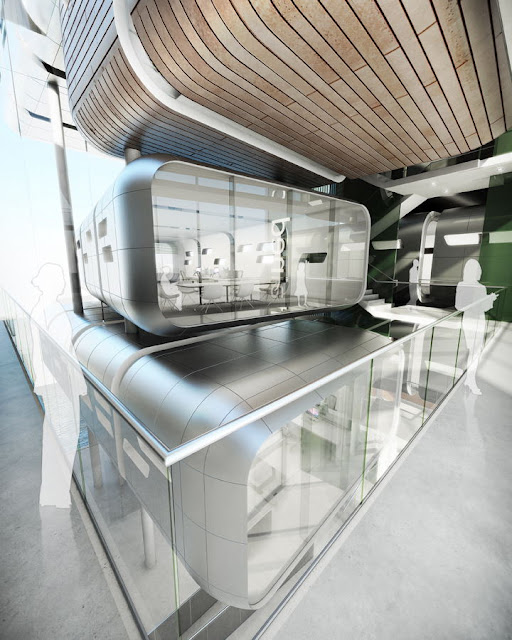

Image © Courtesy of Aedas Architects

description by Aedas Architects
Contained calls
The form of the building is bold and iconic; its concept is derived from the former warehouse storage units that once inhabited the site. By loosely arranging these modules between the existing buildings, it creates space for both elements to ‘breathe’. The intention is not to infill the site but to maintain the existing views and relationship with the River Aire and the surrounding context. The scheme enhances the public realm by providing more permeability across the site through the introduction of a South facing terrace linked to a Riverside walk, this will offer new connections to the adjacent future Calls Wharf development and provide valuable green space within the city.

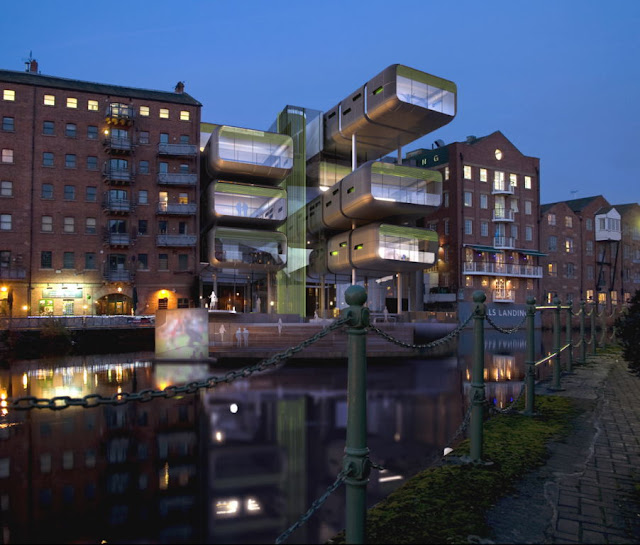

Image © Courtesy of Aedas Architects

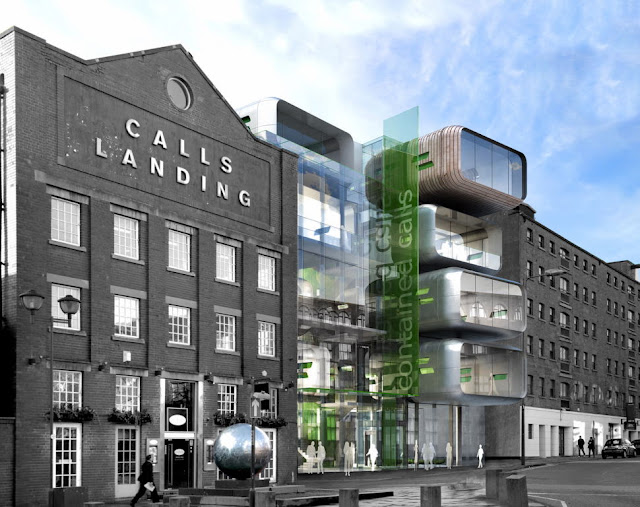

Image © Courtesy of Aedas Architects
The building is designed as a ‘family’ of elements that creates a new business community along the River Aire. The individual prefabricated modules provide 136m2 of open plan work space, and whilst they all share a ‘family resemblance’ they can be modified to respond to their occupants needs. The stacking of these elements allows for change and flexibility through the addition and subtraction of modules, these can be added both horizontally and vertically to allow for future expansion.

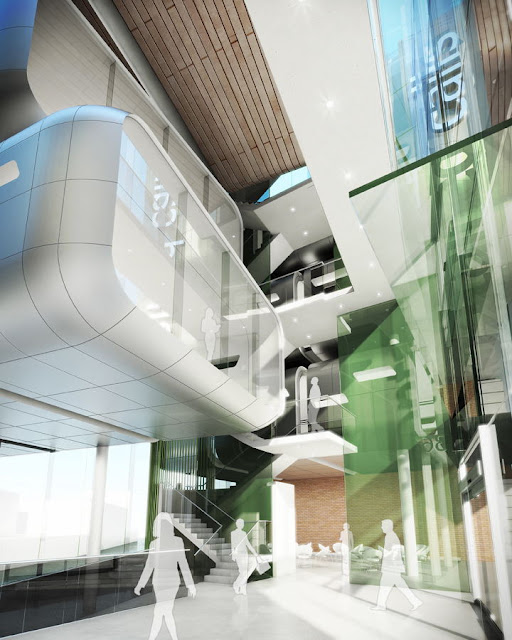

Image © Courtesy of Aedas Architects

Image © Courtesy of Aedas Architects
It is proposed that the pods are constructed using monocoque construction techniques. The main principle of the technique is that it supports structural load by using an objects external skin as opposed to using an internal frame or truss that is then covered with a non-load-bearing skin. A robust and flexible monocoque structure will allow the building to change and evolve over time with minimal disruption. As the construction is flexible it is possible that the site could return to its current state once the lifetime of the building is complete.
site analysis--Image © Courtesy of Aedas Architects

conceptual diagram--Image © Courtesy of Aedas Architects
It is proposed that the development will achieve a minimum Excellent BREEAM rating through the holistic design approach that has been adopted. We have utilised a building form to maximise cool north light and control solar gains, whilst maintaining natural ventilation through the atrium. The fabric of the modules is to adopt “passivhaus” principles – high thermal mass, low air leakage and high insulation, efficient services will be provided that have responsive controls and will be closely monitored. The building has the potential to achieve zero carbon with the inclusion of further residual energy and a community combined heat and power plant.
The scheme adopts the innovative sustainable design principles that responds to its unique environment and acts as a landmark on the Leeds skyline.

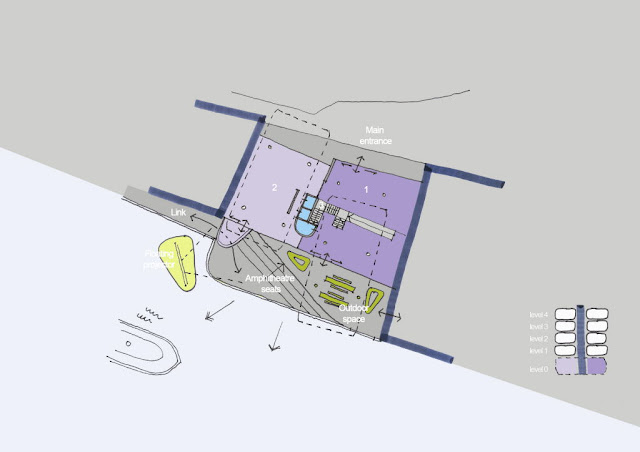

ground floor plan--Image © Courtesy of Aedas Architects

typical floor plan--Image © Courtesy of Aedas Architects
sustainable design--Image © Courtesy of Aedas Architects

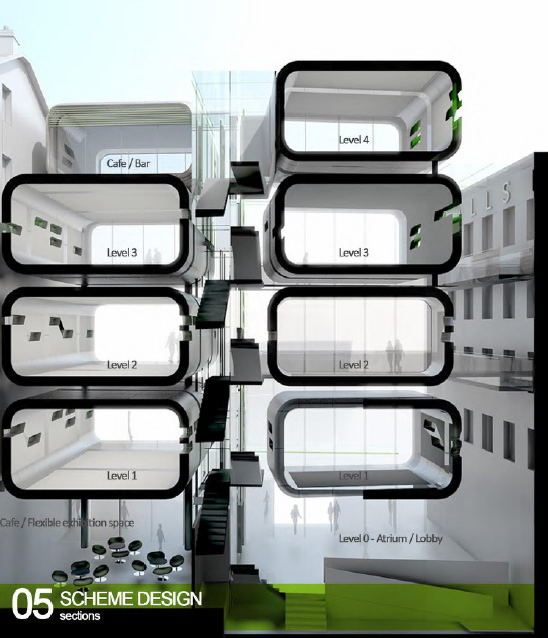

section--Image © Courtesy of Aedas Architects
The people
Architect: Aedas Architects
Location: Leeds, United Kingdom
Images: © Courtesy of Aedas Architects
