UAX Studio in Kojetín : By Kamil Mrva Architects

Kojetín, Czech Republic
Kamil Mrva Architects
Post By:Kitticoon Poopong
Photo © Courtesy of Studio Toast
The plot is located in the middle of Kojetín, close to Nový Ji?ín, on a hill with a view of the surrounding landscape. The investor’s intention was to reconstruct a former barn into a place for work and living in the first phase, and build a new family house in the vicinity in the future. The original sandstone walls and pillars from 1862 have been preserved.

Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast

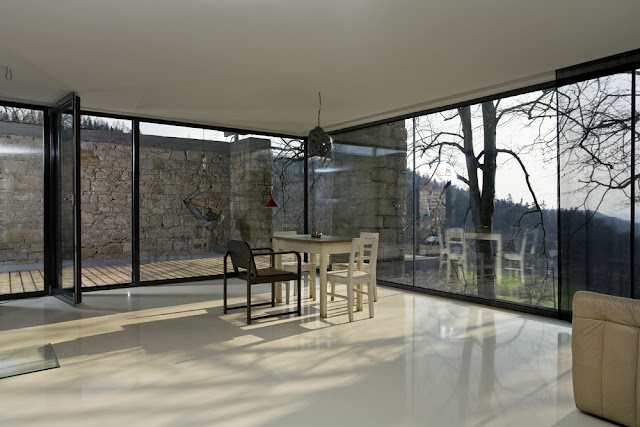

A reinforcing concrete ring was designed to which a lightweight shed roof was anchored. Inside the original building, a square structure was erected – a studio. This inner wooden building opens to the south and west with glass walls. A distinct element of the composition is a terrace projecting out over the sloping terrain of the garden.
Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast
The single-space concept is based on how our ancestors used to live in this region. All necessities were taken care of in one parlour room; a kitchenette, sitting room and place for sleeping and working. A kitchen, dining room, sitting room with a study and a bedroom with a bathroom are designed in the living space. On the terrace there is a covered space for sitting in the summer and a sunny plank projecting outward.
Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast
The project was designed using natural materials. The load-bearing structure and lightweight roof are made of wood, while the ventilated façade is made from Cetris cement-bonded particle boards. The glass parts of the building were made of insulated, double-pane windows with aluminium frames in the same shade as the façade. The terrace consists of steel girders and a wooden deck.
Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast

Photo © Courtesy of Studio Toast

floor plan--drawing Courtesy of Kamil Mrva Architects

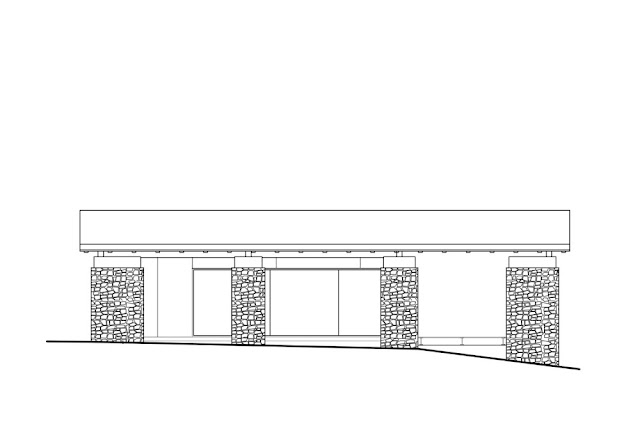

north elevation--drawing Courtesy of Kamil Mrva Architects

west elevation--drawing Courtesy of Kamil Mrva Architects

section 01--drawing Courtesy of Kamil Mrva Architects

section 02--drawing Courtesy of Kamil Mrva Architects
The people
Architects: Kamil Mrva Architects
Location: Kojetin, Czech Republic
Project Team: Kamil Mrva, Blaženka Bebek, Jaroslav Holub, Jitka Pospíšilová, Radek Leskovjan
Owner: Radek Leskovjan, uax®
Structural Engineer: Marek Lukáš
General Contractors: Commodum s.r.o., Alfest Lučina
Project Year: 2006
Construction Year: 2007–2009
Photographs: studio Toastvia:contemporist/archdaily
/
