Gwangju Si, Gyeonggi-Do, South Korea
Hohyun Park + Hyunjoo Kim
Post By:Kitticoon Poopong
|
Photo © Courtesy of Jungmin Seok |
The site is located at Gwangju Si, Gyeonggi-Do, where is not so far from

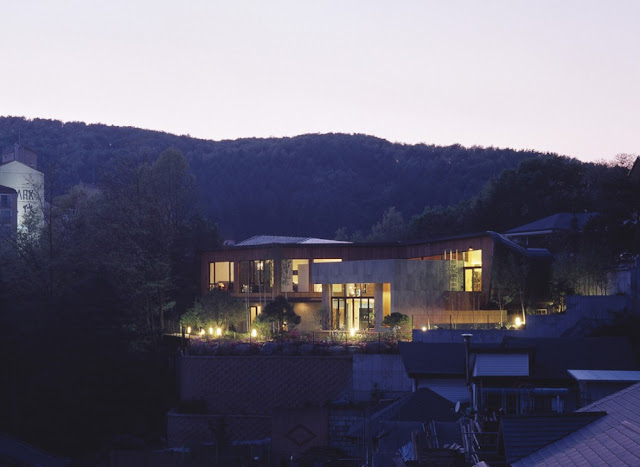

Bundang new town. Surrounded by small houses, it is at the top of a hill with deep slope. First thing to consider is to keep woods on west side of the site. Available area of the site is limited by the woods. Facing a view of mountains on south side, the building is located.
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
In composition of
space, relationship among programs and circulation are played important role. Ground level, which is divided by kitchen/Dining and living area and upper level, which is divided by children rooms and master zone are crossing at division area. By this manner, space is gradually ascending from entry to master zone.
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |

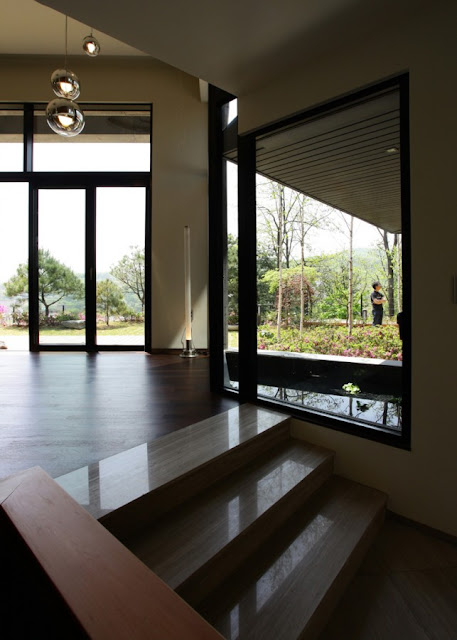

Next thing to consider is to make dynamic space by changing size of space and by leading sight. High ceiling at the entrance corridor is more emphasized by sunlight through skylight and a wall, which is faced at the end of corridor, inducts eye to dining area. At this point, the ceiling height is suddenly changed by overhead ramp. High ceiling living area appears through low-rise 3step staircase, which is crossing outside water pond and inside plant area.
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |

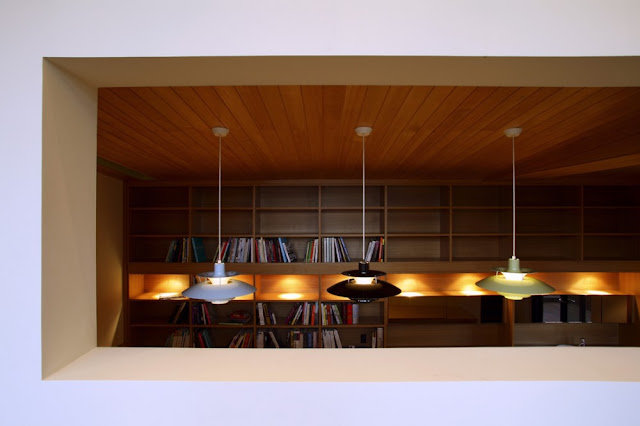

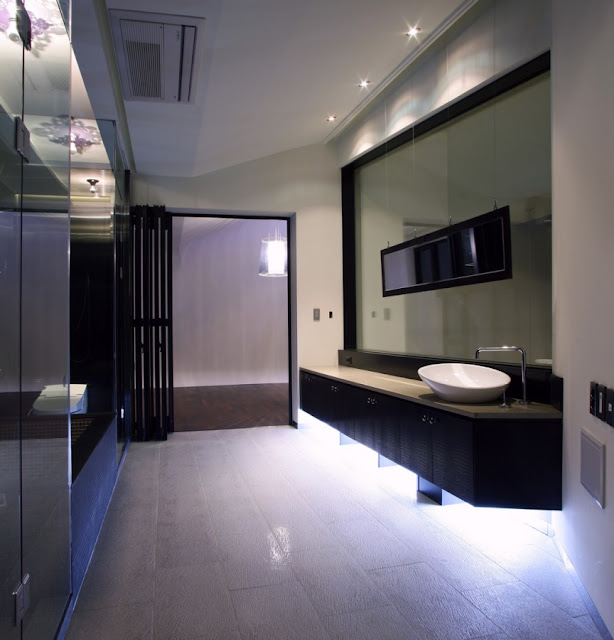

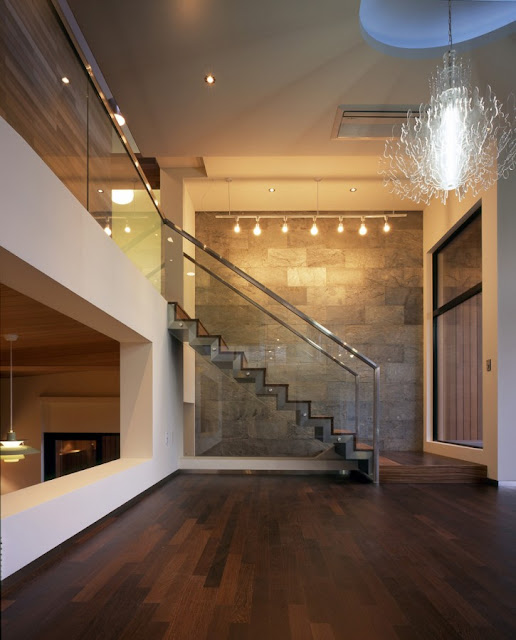

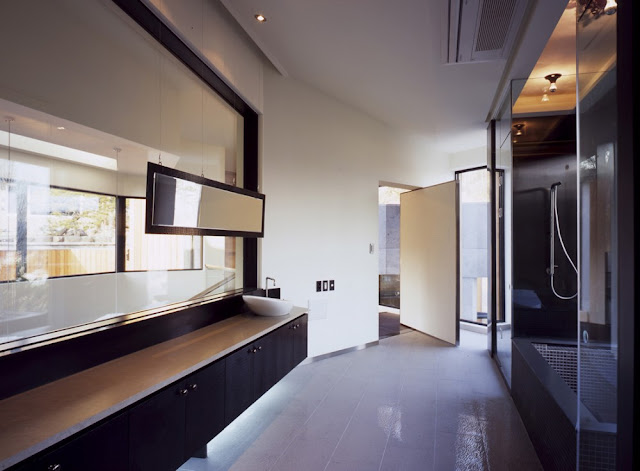

From living area, space bifurcates to library at lower level and to upper level. Master zone, where is a climax in space scenario, is connected by a corridor and a ramp from children’s room at upper level. Master bedroom is entered through open bathroom and powder room and reconnected to entrance corridor.
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |

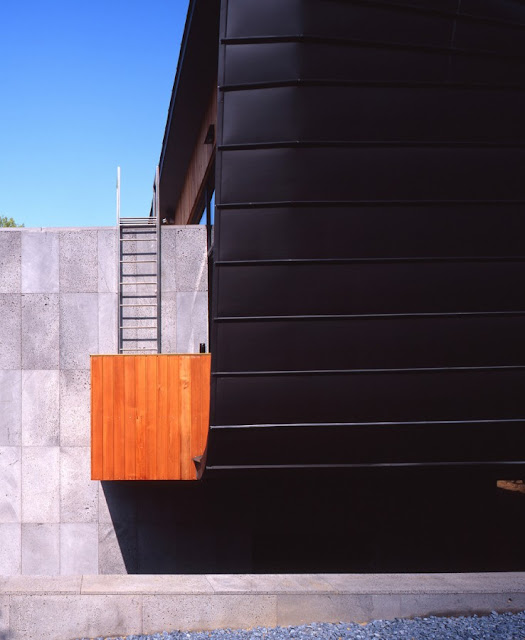

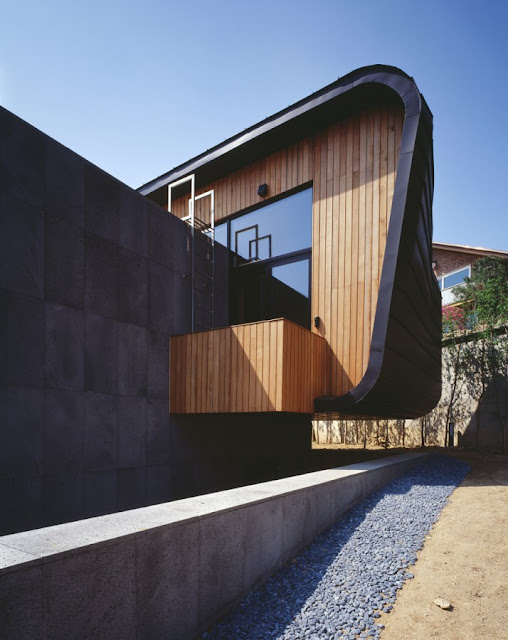

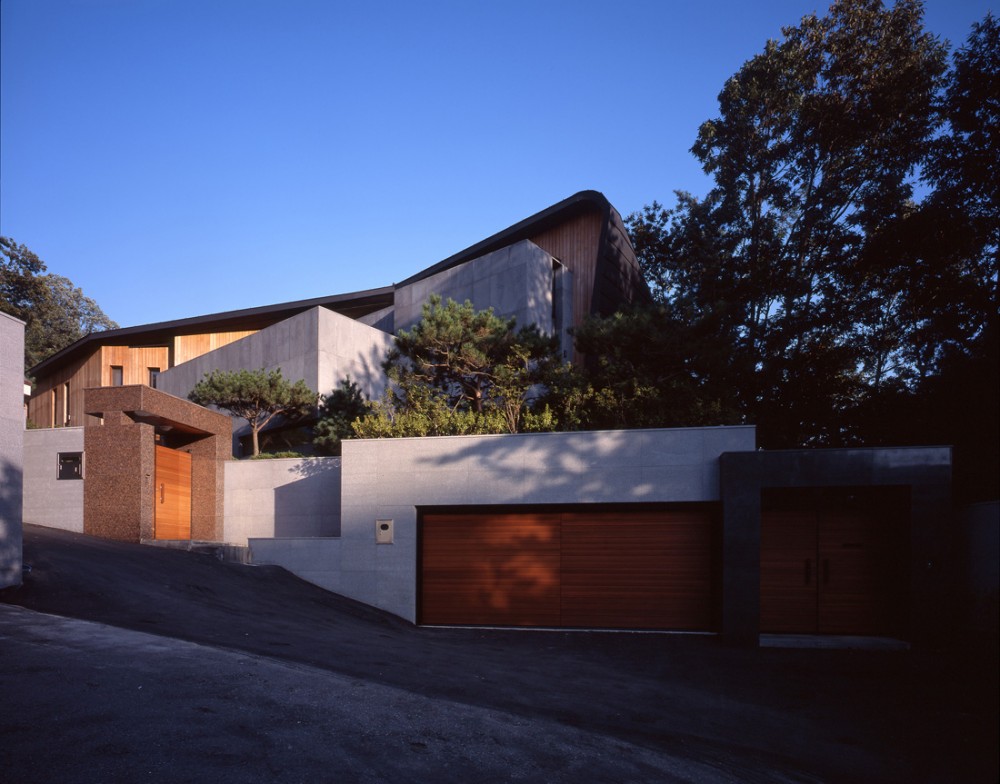

Shape of the building is planned to follow the space scenario and roof, which is covered by black zinc is wrapping around upper level mass and form a homogeneous and muscular shape. Contrarily, lower level masses, which are covered by basalt, stand rigidly. Water pond and inner plant space are inserted at the crossing point of lower level mass and upper level mass.
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
Photo © Courtesy of Jungmin Seok |
|
site plan--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
basement floor plan--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
ground floor plan--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
upper floor plan--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
roof plan--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
elevation 01--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
elevation 02--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
section 01--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|

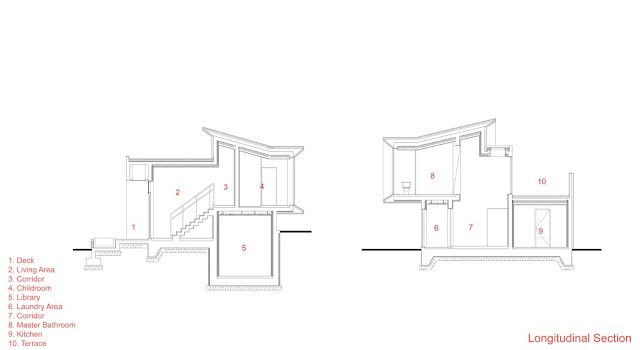

section 02--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|

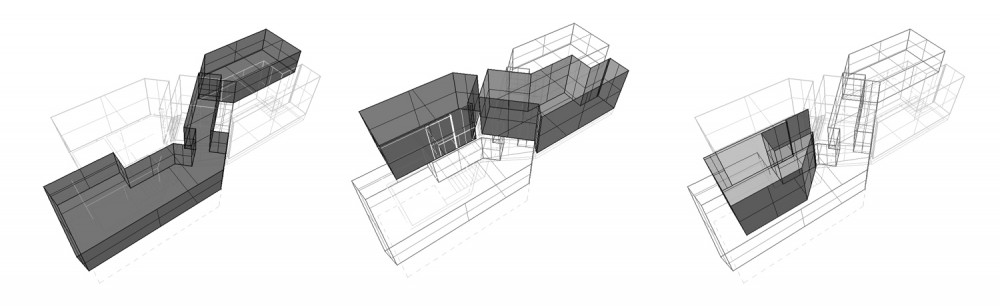

mass study diagram--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|

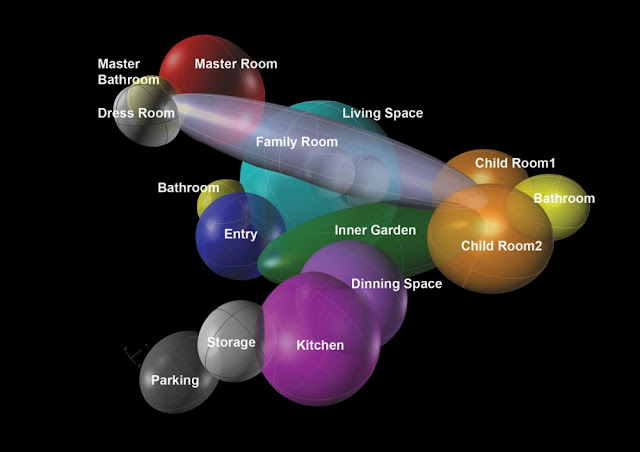

program diagram--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
|
space diagram--drawing Courtesy of Hohyun Park + Hyunjoo Kim |
The people
Architect: Hohyun Park + Hyunjoo Kim
Location: Gwangju Si, Gyeonggi-Do, South Korea
Use: Residential
Structure: Reinforced Concrete
Exterior Finishes: Black Zinc, Basalt, Red Cedar, Slate
Interior Finishes: Paint, Cedar, Pine, Wenge Flooring, Wenge& Zebrano staircase, Slate
Design year: 2007-2008
Construction year: 2008-2009
Site Area: 805 sqm
Gross Floor Area: 287,5 sqm
Building Area: 189,64 sqm
Landscaping Area: 615,36 sqm
Gross Floor Ratio: 26.89%
Building Coverage Ratio: 23.56%
Photographs: Jungmin Seok
