Istanbul, Turkey
REX
Post By:Kitticoon Poopong
 |
| Photo © Courtesy of Iwan Baan, REX |
The internationally-renowned architecture and design firm
REX recently has completed the
Vakko Fashion Center and Power Media Center in Istanbul, Turkey. The project will serve as
corporate headquarters of Vakko (
Turkey’s preeminent
fashion house) and Power Media (Turkey’s best-known music and
television network). It was built based on the existing abandoned hotel’s structure, REX divided the project into two structurally independent components – The outer ring concrete skeleton and the center ring for a set of steel boxes named the Showcase, it also acts to serve the circulation path that winds from bottom to top of the Showcase.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
Project description courtesy of REX
REX ARCHITECTURE P.C., an internationally renowned architecture and design firm announced completion of the new
headquarters and production studios for Turkey’s preeminent
fashion and media sister companies, representing the newest example of the firm’s innovative
adaptive-reuse approaches to architecture.
The Vakko Fashion Center and Power Media Center transformed the abandoned skeleton of an unfinished hotel project in Istanbul to create one of the most significant new additions to Turkey’s contemporary architectural landscape.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
The structure will serve as corporate headquarters of Vakko, Turkey’s preeminent fashion house, including offices, showrooms,
conference rooms and auditorium spaces. The headquarters for Power Media, Turkey’s best-known music and television network, includes television studios, radio production facilities and screening rooms.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
The unfinished Istanbul hotel was not the only repurposed key element of the project. REX’s adaptive-reuse expertise enabled it to modify plans from another canceled project in the United States, allowing construction to begin only four days after REX received the commission.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
When the CEO of Vakko and Power Media approached REX to design and construct a corporate headquarters within one year using the abandoned skeleton of an unfinished hotel, the requested design and construction timetable would normally have been unthinkable. Fortuitously, the unfinished hotel had the same plan dimension, floor-to-floor height and servicing concept as REX’s design for the California Institute of Technology’s Annenberg Center, which had recently been canceled. By adapting construction documents produced for the Annenberg Center to the abandoned concrete hotel skeleton, REX was able to direct the start of construction just four days after Vakko and Power Media first approached the firm.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
REX divided the project into two structurally independent components. The “U-shaped” concrete skeleton—completed by a fourth side—is dubbed the Ring, and contains conventional, flexible office space. At the Ring’s center, a new six-floor steel tower—named the Showcase—contains unique programs, including an auditorium, showrooms, meeting rooms and executive offices, as well as all vertical circulation and restrooms. By separating the structure into these two independent components, a time-consuming forensic analysis of the existing concrete skeleton was rendered unnecessary while the structural design of the Showcase was simplified. The resultant savings in time allowed construction to start immediately on the existing skeleton while simultaneously providing an eight-week period to design the rest of the building.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |

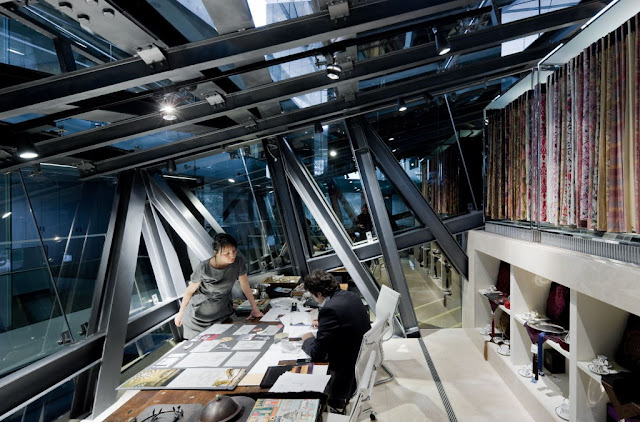

Given only two weeks after initiating design to submit the Showcase’s steel order, REX and its engineers designed a set of steel boxes that could be assembled in myriad configurations. This strategy allowed the steel shapes and quantities to be ordered from the steel mill before the final Showcase design was complete. Ultimately, space use requirements, code restrictions, and a circulation path winding from bottom to top of the tower dictated the final stacking of the boxes.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |

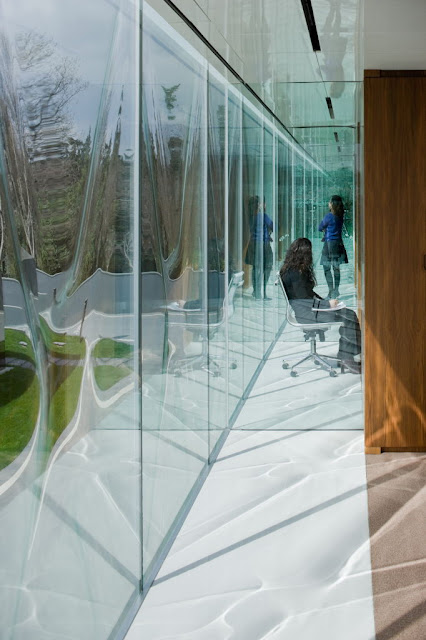

A beautiful and refined architectural image was critical to maintaining Vakko/Power’s public profile; yet, the clumsy structure of the abandoned hotel was impossible to hide given the project’s compressed schedule. REX embraced this constraint by designing an exceptionally transparent and thin glass façade for the Ring. By slumping a structural “X” into each pane to increase the glass’s strength, the glass’s thickness was reduced and the need for perimeter mullions was eliminated. The resulting ethereal glass “Saran Wrap” subtly reveals the Ring’s pre-existing concrete skeleton and suggests the Showcase behind. The Showcase, meanwhile, is clad in mirror-glass, cloaking the steel boxes with a mirage-like exterior, and enlivening the building’s interior to kaleidoscopic effect.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
By innovatively reusing an existing structure, REX reconciled the normally competing requirements for speed and design excellence in the Vakko Fashion Center and Power Media Center. The result is a unique example of adaptive reuse, and a new architectural landmark for Turkey.
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| Photo © Courtesy of Iwan Baan, REX |
 |
| ground floor plan--drawingCourtesy of REX |
 |
| level 1 floor plan--drawingCourtesy of REX |
 |
| level 2 floor plan--drawingCourtesy of REX |
 |
| level 3 floor plan--drawingCourtesy of REX |
 |
| level 4 floor plan--drawingCourtesy of REX |
 |
| roof plan--drawingCourtesy of REX |
 |
| level -1 floor plan--drawingCourtesy of REX |
 |
| level -2 floor plan--drawingCourtesy of REX |
 |
| Longitude section--drawingCourtesy of REX |
 |

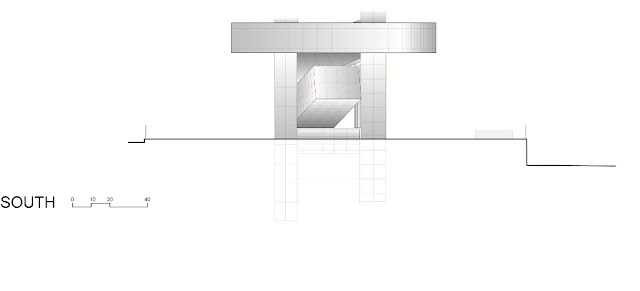

| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |
| elevation--drawingCourtesy of REX |
 |

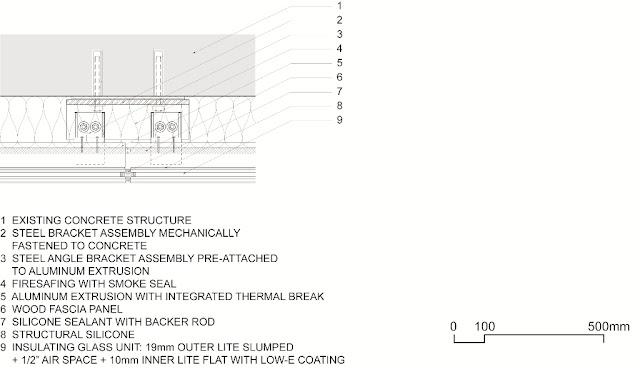

| facade detail--drawingCourtesy of REX |
 |
| facade detail--drawingCourtesy of REX |
 |
| facade detail--drawingCourtesy of REX |
 |
| concept diagram--drawingCourtesy of REX |
 |
| Program & Circulation diagram--drawingCourtesy of REX |
The people
ARCHITECT: REX
KEY PERSONNEL: Erez Ella, Tomas Janka, Mathias Madaus, David Menicovich, Tsuyoshi Nakamoto, Joshua Prince-Ramus, Ishtiaq Rafiuddin, Tieliu Wu
CONSULTANTS: ARTE, Autoban, Buro Statik, Cedetas, Dora, Eleksis, Front, Gurmen Muhendislik, Lamglass, Norm Tecnic, Say Yapi, STEP, Superpool, Cem Mimarlik
PHOTOGRAPH: Iwan Baan, REX
CLIENTS: Vakko and Power Media
PROGRAM: Headquarters for a Turkish fashion house—including offices, showrooms, conference rooms, auditorium, museum, and dining hall—as well as the television studios, radio production facilities, and screening rooms of its media sister-company
LOCATION: Istanbul, Turkey
AREA: 9,100 m² (98,000 sf)
STATUS: Completed 2010
PHOTOGRAPHS: Courtesy of
Iwan Baan, REX
