Winnipeg, Manitoba, Canada
5468796 Architecture +
Cohlmeyer Architecture
Post By:Kitticoon Poopong
 |
| Photo © Courtesy of 5468796 Architecture |
The Victoria Crescent site encompasses two former river lots in one 100 foot x 400 foot heavily treed parcel on the
Red River. The original residence on the site was built circa 1920, but its form had been long lost under layers of modifications, additions and tacked on porches and decks.
 |
| Photo © Courtesy of 5468796 Architecture |
 |
| Photo © Courtesy of 5468796 Architecture |
The essence of the old house, not its actual presence, becomes the centre of the new residence, as the original foundation is preserved as a sunken
courtyard. It turns the former spatial arrangement inside out: house to courtyard, yard to house, solid to void, void to solid. This shift allows the ghost of the old house to remain. The courtyard expands the visual space beyond the distinct rooms and creates a nexus around which circulation spirals in three dimensions.
 |
| Photo © Courtesy of 5468796 Architecture |
 |
| Photo © Courtesy of 5468796 Architecture |

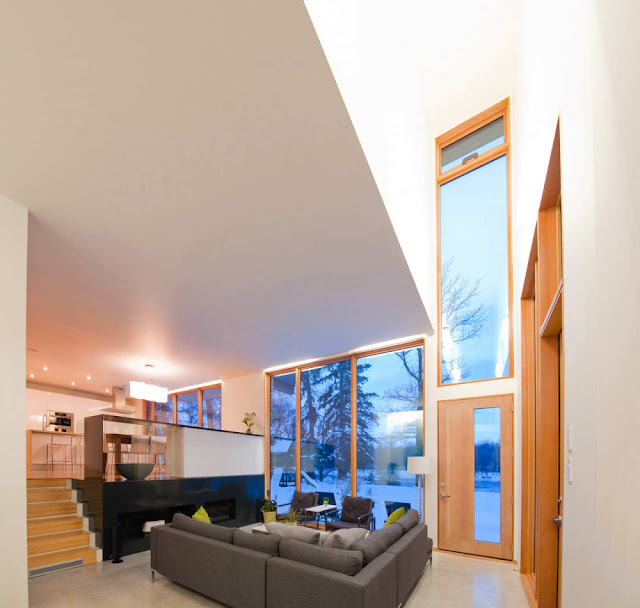

A bridge links the carport to the main entry across the sunken courtyard – taking one over and through the void into the house. A hidden panoramic view of the river beyond is revealed upon entering the vaulted hall, further connecting the landscape to the interior.
 |
| Photo © Courtesy of 5468796 Architecture |
 |
| Photo © Courtesy of 5468796 Architecture |
 |
| lower level plan--drawing Courtesy of 5468796 Architecture + Cohlmeyer Architecture |
 |
| main level plan--drawing Courtesy of 5468796 Architecture + Cohlmeyer Architecture |
 |
| upper level plan--drawing Courtesy of 5468796 Architecture + Cohlmeyer Architecture |
The people
Architects: 5468796 Architecture Inc +
Cohlmeyer Architecture Ltd.
Location: Winnipeg, Manitoba, Canada
Structural Engineering: Hanuschak Consultants Inc
Contractor: Sakiyama Construction
Project area: 3,500 sq. ft.
Project year: 2009
Photographs: 5468796 Architecture Inc.
