Friday, August 19, 2011

The City of Culture : By Eisenman Architects

Santiago de Compostela, Spain
Eisenman Architects
Post By:Kitticoon Poopong
Photo © Courtesy of Duccio Malagamba
The City of Culture is a new cultural center for the Province of Galicia in northwestern Spain. Its design evolves from the superposition of three sets of information. First, the street plan of the medieval center of Santiago is overlaid on a topographic map of the hillside site, which
overlooks the city. Second, a modern Cartesian grid is laid over these medieval routes. Third, through computer modeling software, the topography of the hillside is allowed to distort the two flat geometries, thus generating a topological surface that repositions old and new in a simultaneous matrix never before seen.
Photo © Courtesy of Duccio Malagamba
The original center of Santiago conforms to a figure/ground urbanism in which buildings are figural, or solid, and the streets are residual, or void spaces. Through this mapping operation, the project emerges as a curving surface that is neither figure nor ground but both a figured ground and a figured figure that supersede the figure-ground urbanism of the old city. Santiago’s medieval past appears not as a form of representational nostalgia but as a new yet somehow familiar presence found in a new form.
Photo © Courtesy of Duccio Malagamba
The six buildings of the project are conceived as three pairs: the Museum of Galicia and the International Art Center; the Center for Music and Performing Arts and the Central Services building; and the Library of Galicia and the Galician Archives. Visitors’ experiences of any given building will be affected by its relationship to its immediate partner.
Photo © Courtesy of Duccio Malagamba

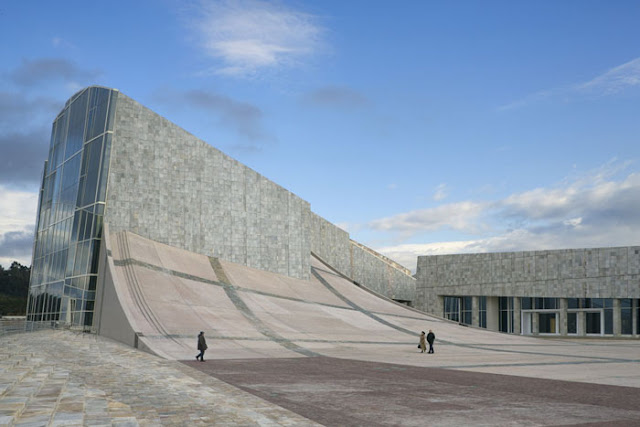

The caminos, or pedestrian streets, between the buildings also open onto a public plaza, which is bordered by the six buildings and features landscape and water elements. The largest building is the Performing Arts Theater, which will stand 42.5 meters high. The heights of all of the buildings rise in gentle curves that seem to reconstruct the shape of the hilltop with their collective rooflines, which are all clad in stone and marked with the grids that inform the design of the site.
Photo © Courtesy of Duccio Malagamba
Photo © Courtesy of Duccio Malagamba
Photo © Courtesy of Duccio Malagamba

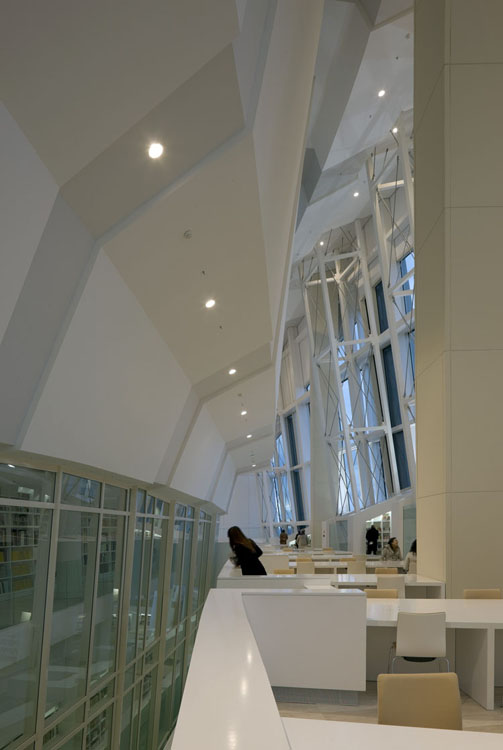

The Library of Galicia and Galician Archives opened their doors on January 11, 2011, during a ceremony presided over by the Prince and Princess of Asturias. The 17,372-square-meter Library will accommodate one million books in open stacks, rare book archives, and storerooms on several levels. The 14,149-square-meter Archive includes spaces for research and exhibition. Both the Library and the Archive are clad in quartzite and feature unique curtain walls. The museum and administration buildings are expected to open in late fall 2011.
Photo © Courtesy of Duccio Malagamba
floor plans--drawing © Courtesy of Eisenman Architects

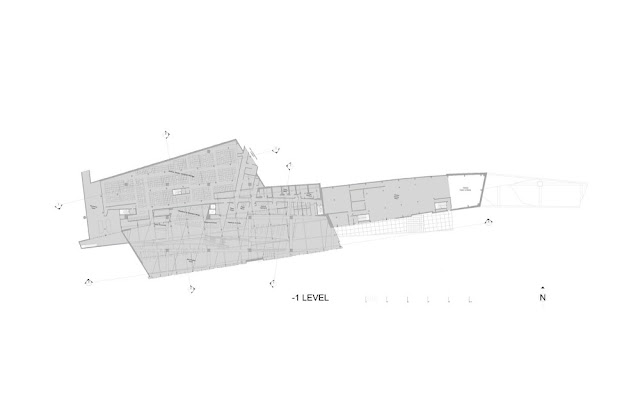

level -1 floor plan--drawing © Courtesy of Eisenman Architects
level 0 floor plan--drawing © Courtesy of Eisenman Architects
roof plan--drawing © Courtesy of Eisenman Architects

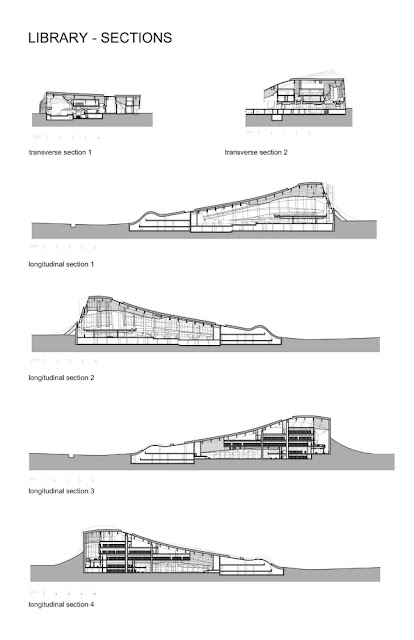

library-sections--drawing © Courtesy of Eisenman Architects
sections--drawing © Courtesy of Eisenman Architects
The people
Architects: Eisenman Architects
Location: Santiago de Compostela, Spain
Executive Architect: Andres Perea Ortega and euroestudios
Client: Fundación cidade da cultura de Galicia
Project Year: 2011
Photographs: Duccio Malagamba

Note>>Location in this map, It could indicate city/country but not exact address.
