High Park : By Rojkind Arquitectos

Monterrey, Nuevo León, Mexico
Rojkind Arquitectos
Post By:Kitticoon Poopong
Image © Courtesy of Rojkind Arquitectos, Glessner Group
High Park is located on the outskirts of the northern city of Monterrey, Mexico. Surrounded by the Majestic Sierra Madre Oriental Range. The project is designed to take full advantage of its geographic location and to help mitigate the extreme climatic conditions.
Image © Courtesy of Rojkind Arquitectos, Glessner Group
As a recurring design concern for rojkind arquitectos and as a way of integrating the building into the pedestrian realm (giving back to the community), the building steps back to create an outdoor shaded space that can be enjoyed by the residents and visitors alike.
Image © Courtesy of Rojkind Arquitectos
Image © Courtesy of Rojkind Arquitectos
Image © Courtesy of Rojkind Arquitectos
Normally these types of building don’t allow for the creation of any public space, the entire site is developed with the intention of maximizing the most square footage for it’s commercial interest. This project takes a different approach by allowing its site not to be built in its entirely and provide public space that can be utilize by anyone” Gerardo Salinas, partner, rojkind arquitectos.
Image © Courtesy of Rojkind Arquitectos
Image © Courtesy of Rojkind Arquitectos
To counterbalance the strong sun, the floor plates shift in relation to one another creating a play of light and shadow, and the use of local stone, done by local craftsmen on the facade allows the building to stay cooler and makes its appearance change as the sun moves across the horizon.
Image © Courtesy of Rojkind Arquitectos
Image © Courtesy of Rojkind Arquitectos
The project offers outdoor terraces for each apartment due to the strict setback restrictions of the site, capitalizing on the views of the adjacent mountains.
ground floor plan--drawing © Courtesy of Rojkind Arquitectos
level 1 floor plan--drawing © Courtesy of Rojkind Arquitectos
level 2 floor plan--drawing © Courtesy of Rojkind Arquitectos
level 3 floor plan--drawing © Courtesy of Rojkind Arquitectos
People enjoy the convenience of a house for its connection to a garden, or exterior spaces, which normally apartments lack. By having a project which integrates, not only terraces but real gardens even at the upper levels, we have achieved an experience unique to Monterrey.” Michel Rojkind, founding partner.
level 4 floor plan--drawing © Courtesy of Rojkind Arquitectos
level 5 floor plan--drawing © Courtesy of Rojkind Arquitectos
level 6 floor plan--drawing © Courtesy of Rojkind Arquitectos
High Park consists of a total of ten levels above grade and three and a half levels of underground parking. The first two levels are for commercial retail, the remaining 8 levels for luxury apartments. Within these 8 residential levels, recreational and entertainment spaces will be provided for the residents including a pool, gym, spa, etc. These 32 apartments will range in size from 250 square meters to 650 square meters.
level 7 floor plan--drawing © Courtesy of Rojkind Arquitectos
level 8 floor plan--drawing © Courtesy of Rojkind Arquitectos
level 9 floor plan--drawing © Courtesy of Rojkind Arquitectos
opening study diagram--drawing © Courtesy of Rojkind Arquitectos
opening study diagram--drawing © Courtesy of Rojkind Arquitectos
Detail--drawing © Courtesy of Rojkind Arquitectos
Detail--drawing © Courtesy of Rojkind Arquitectos
terrace diagram--drawing © Courtesy of Rojkind Arquitectos

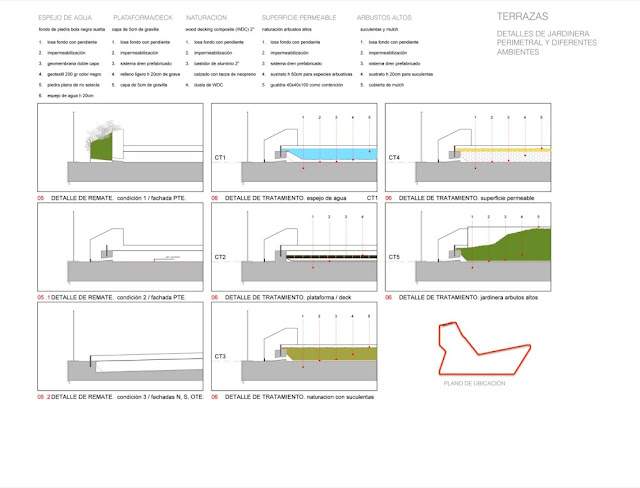

terrace detail--drawing © Courtesy of Rojkind Arquitectos
terrace detail--drawing © Courtesy of Rojkind Arquitectos


Vedio: Mixed uses building designed by Michel Rojkind © Glessner Group, Rojkind Arquitectos


The people
Architects: Rojkind Architects
Location: Monterrey, Nuevo León, Mexico
Design Principal: Michel Rojkind
Principal: Gerardo Salinas
Project Team: Alonso de la Fuente, Michelle López, Carlos Alberto Ríos, Yasser Salomón, Carlo María Ciampoli [3D Consultant], Rafael Cedillo, Felip Navarro, Alejandro Argumedo, Hazael Ortiz, Andrea León
Structural Engineer: Studio NYL
M.E.P: Quantum Dseño
Landscape: Entorno Taller de Paisaje
Construction Area: 13,000 sqm
Status: In Progress
Design Date: 2010
Images & Renders: © rojkind arquitectos, © Glessner Group
