Saturday, September 3, 2011

Hotel Mod05 / By Enrica Mosciaro, Fusina6

Sandrá di Castelnuovo del Garda, Verona, Italy
Enrica Mosciaro, Fusina6
Post By:Kitticoon Poopong
Photo © Courtesy of Ciro Frank Schiappa--Main façade at night
The hotel has two souls: a public one, which presents the dynamic of the arriving and departing zones, brings the idea of encounter, activity and leisure; and an intimate and protected one, designed for the night and the rest.

Photo © Courtesy of Ciro Frank Schiappa--Main façade
Photo © Courtesy of Ciro Frank Schiappa--Main façade
The Hotel Mod05 configured itself as the overlap of two buildings, divided without touching each other by a large stripe of glass. The compact but light volume of the rooms floats on the complex and articulated ground floor.
Photo © Courtesy of Ciro Frank Schiappa--Rear side façade
Photo © Courtesy of Ciro Frank Schiappa--Main façade
Photo © Courtesy of Ciro Frank Schiappa--Main façade
The ground floor builds itself around a glassy central place which brings together different functions: The reception, the office, the bar, the restaurant, the meeting room and the kitchen.
Photo © Courtesy of Ciro Frank Schiappa--Rear façade at night
Photo © Courtesy of Ciro Frank Schiappa--Rear façade at night
Photo © Courtesy of Ciro Frank Schiappa--Rear façade at night
The hall develops itself around these volumes always allowing the exterior and the sky to be viewed. The matter strength of the volumes is highlighted by the treatment of the surface and the continuity of the finishing and the contrast of colors of the interior and the exterior.
Photo © Courtesy of Ciro Frank Schiappa--Entrance
Photo © Courtesy of Ciro Frank Schiappa--Reception and hall
Photo © Courtesy of Ciro Frank Schiappa--Bar
Photo © Courtesy of Ciro Frank Schiappa--Bar and entrance
The volume where the rooms are placed dematerializes itself: a second wood façade lets the light to be modulated into the interior of the rooms, selecting the view and regulating the solar flow during the different seasons of the year.
Photo © Courtesy of Ciro Frank Schiappa--Restaurant
Photo © Courtesy of Ciro Frank Schiappa--Bar
Photo © Courtesy of Ciro Frank Schiappa--Hall
In the hotel change always take place, in every room, every hour of the day, at every moment.
Photo © Courtesy of Ciro Frank Schiappa--Room
Photo © Courtesy of Ciro Frank Schiappa--Room
Photo © Courtesy of Ciro Frank Schiappa
Photo © Courtesy of Ciro Frank Schiappa
A living “façade” is what brings harmony to the building witch lives in tune with the building’s inhabitant.
Description from the Architects:
Photo © Courtesy of Ciro Frank Schiappa
Photo © Courtesy of Ciro Frank Schiappa
Photo © Courtesy of Ciro Frank Schiappa
Photo © Courtesy of Ciro Frank Schiappa--Main façade (day to night)
site plan--drawing © Courtesy of Enrica Mosciaro, Fusina6
ground floor plan--drawing © Courtesy of Enrica Mosciaro, Fusina6
second floor plan--drawing © Courtesy of Enrica Mosciaro, Fusina6
Main façade (south-east)--drawing © Courtesy of Enrica Mosciaro, Fusina6
Rear façade (north-west)--drawing © Courtesy of Enrica Mosciaro, Fusina6
Side façade (north-east)--drawing © Courtesy of Enrica Mosciaro, Fusina6
Longitudinal section--drawing © Courtesy of Enrica Mosciaro, Fusina6
Transverse section--drawing © Courtesy of Enrica Mosciaro, Fusina6

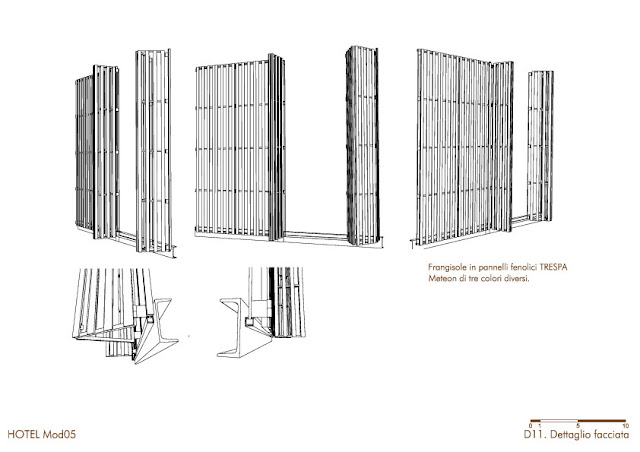

Detail façade--drawing © Courtesy of Enrica Mosciaro, Fusina6
sketch--drawing © Courtesy of Enrica Mosciaro, Fusina6
Project Data
Project name: Hotel Mod05
Location: Sandrá di Castelnuovo del Garda, Verona, Italy
Program: Hotel
Allotment Area: 3,337 m2
Constructed surface Area: 3,002 m2
Completion Year: 2008
Volume: 5,800 m3

The people
Architect: Enrica Mosciaro, Fusina6
Design team: Katerina Samsarelou, Nuria Valldeneu, Jordi Castel, Martin Ares, Mathilde Felix-Faure, Paola Chellini, Claudia Manferrari, Carolina Vargas, Wolf Weikart
Management of construction site: Andrea Aloisi, Enrica Mosciaro
Client: Italgestioni spa
Frame: Marino Gavasso
Installations: Studio Quattrina, Company: Faccioli Costruzioni
Photographs: © Ciro Frank Schiappa
