Museo Soumaya Museum : By FREE | Fernando Romero EnterprisE

Mexico City, Mexico
FREE | Fernando Romero EnterprisE
Post By:Kitticoon Poopong

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Designed by FREE | Fernando Romero EnterprisE, Museo Soumaya opened to the public on March 29, 2011 after four years of development. The Museo Soumaya houses one of the most important art collections in Latin America with over 6,200 artworks and 60,000 square feet of exhibition space.

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Javier Hinojosa

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

The Soumaya Museum is located in a former industrial zone dating from the 1940’s which today presents a very high commercial potential. The Soumaya Museum plays a key role in the reconversion of the area: as a preeminent cultural program, it acts as an initiator in the transformation of the urban perception. Its avant-garde morphology and typology define a new paradigm in the history of Mexican and international architecture.

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

From the outside, the building is an organic and asymmetrical shape that is perceived differently by each visitor, while reflecting the diversity of the collection on the inside. Its heterogeneous collection is housed in a continuous exhibition space spread over six levels, representing approximately 60,000 ft². The building also includes an auditorium for 350 people, library, offices, a restaurant, a gift shop and a multi-purpose gathering lounge.

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

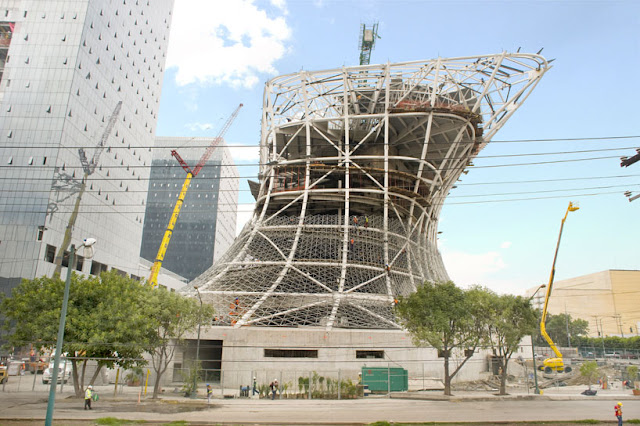

The shell of the building is constructed with 28 steel curved columns of different diameters, each with its own geometry and shape, offering the visitor a soft non-linear circulation all through the building. Located at each floor level, seven ring beams provide a system that braces the structure and guarantees its stability.

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

The top floor is the most generous space of the museum; its roof is suspended from an impressive cantilever that allows natural daylight to flow in freely. In contrast, the building’s envelope is nearly opaque, offering little and scarce openings to the outside. This gesture can be interpreted as an intention to create a protected shelter for the art collection. The façade is made of hexagonal aluminum modules that optimize the preservation and durability of the entire building.

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

“The Museo Soumaya is an extraordinary structure rising up from the earth’s crust as a multi-dimensional icon,” Raymund Ryan,
Curator,
The Heinz Architectural Center.

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of Adam Wiseman

Click above image to view slideshow

Photo © Courtesy of ana paula herrera

Click above image to view slideshow

floor plan 01--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

floor plan 02--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

floor plan 03--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

section--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

diagram 01--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

diagram 02--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

diagram 03--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

structural diagram--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

circulation diagram--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

programmatic distribution diagram--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

structural diagram 02--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

architectural program--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

air condition diagram--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

smoke extraction diagram--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

circulation diagram 02--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

vistualization--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

vistualization--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

model--drawing © Courtesy of FREE | Fernando Romero EnterprisE

Click above image to view slideshow

Basic Walkthrough of the Soumaya Museum for Master Plan Polanco, Mexico City 2008

http://www.vernissage.tv | Watch President Felipe Calderón and Larry King inaugurating Carlos Slim's Soumaya museum in Mexico City. The museum has been designed by architectes FREE Fernando Romero. By VernissageTV correspondent Jacinto Astiazaran.

Museo Soumaya Museum : By FREE | Fernando Romero EnterprisE

The people
Architects: Lar / Fernando Romero and Mauricio Ceballos
Client: grupo carso / museo soumaya
Estimated completion date: 2010
Location: Lago Zurich # 245, Col. Ampliación Granada, Del. Miguel Hidalgo. México DF. C.P. 11320
Total Area: 17.000 m2
Breakdown:  exhibition halls (6000 m2), auditorium (350 seats), leisure (150 children),
library (3000 books), shops, restaurants and cafeteria (140 seats),
main hall (mixed-use space for 600 people ), storage (2500m2),
general service areas, offices (50 employees), staff area and parking (460 vehicles).
Façade: gehry technologies
Engineer Concept: arup los angeles
Project Regency: inpros
Civil Constructor: pc constructores
Photographs: Adam Wiseman

Architecture Team:
ana medina, herminio gonzalez, omar gerala félix, sergio rebelo, ana paula herrera,
mario mora, juan pedro lópez, guillermo mena, libia castilla, raúl garcía, manuel díaz, alan aurioles,
ana gabriela alcocer, luis ricardo garcía, ivan ortiz, tiago pinto, laura dominguez, juan andres lopez,
olga gomez, hugo fernandez, jason sidelko, eddy slim, nicola, davolio, lee warren, alexander pena,
jacqueline hernandez, kosuke osawa, francisco javier de la vega, david hernandez,  jorge hernandez,
joaquín collado, mariana tafoya, eduardo benítez, pedro lechuga, thorsten englert, luís fuentes,
luís flores, rodolfo rueda, víctor chávez, max betancourt, wonne icks, dolores robles-martínez,
sappho van laer, ophelie chassin, elena haller, abril tobar, diego eumir jasso, albert beele,
homero yánez, cynthia meléndez, hugo vela, susana hernández, gerardo galicia, alberto duran,
camilo mendoza, dafne zvi zaldívar, cecilia jiménez, ángel ortiz, raúl antonio hernández,
alma delfina rosas, wendy guillen, raúl flores, daniel alejandro farías, jesús monroy, saúl miguel kelly,
iván javier avilés, cesar pérez.


Engineers:
Structure: colinas de buen
Steel Producer: swecomex
Mep: dypro
Hydraulic, sanitary installation and fire protection: garza maldonado y asociados
Electric Installation: hubard bourlon
Security / IT & A/V: sitcom

Consultants:
Museographer: museo soumaya / alfonso miranda
Interior & Landscape: mier y teran and inside outside / petra blaisse
Lighting: lighteam & arquitectura de la luz
Vertical Transport: kone & arsenio rodríguez consulting
Kitchen: sanborns
Auditorium: teletec
Environmental graphics: museistica / adriana miranda
Acoustic: saad acústica
