Seoul, South Korea
Kim In Cheurl
Post By:Kitticoon Poopong
 |
| Photo © Courtesy of Park Young Chea |
Korean architect
Kim In Cheurl
designed the innovative
Urbanhive tower located in Seoul, South Korea.

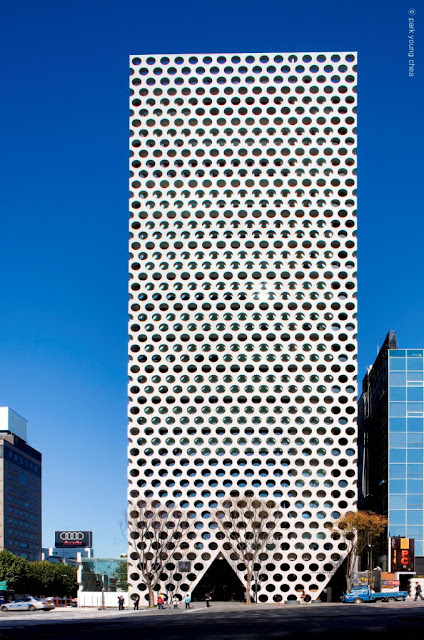

Urbanhive is a 17 levels of 70 meter high tower with white exposed
concrete and contextually sits on the corner of the street within the urban matrix, featuring the perforated architectural façade.
"
The holes in the skin are designed to be a method of looking at the city from the space, an architecture that can also be enjoyed from the city."
Kim In Cheurl
 |
| Photo © Courtesy of Park Young Chea |
 |
| Photo © Courtesy of Park Young Chea |
Description by Kim In Cheurl
Prosody of place – Buildings make places and places form the urban landscape
Urbanhive is a17-storied, 70 metre tower with white exposed concrete and contextually sits on the corner of the street within the urban matrix. The red brick tower designed by
Mario Botta stands on the adjacent corner of the street, creating a
landmark place in the city.
 |
| Photo © Courtesy of Park Young Chea |
The urban matrix consists of latitude and longitude, these lines of origin will cross paths and meet.
Urban energy is gathered at these points. Not only the
physical energy concentrated and spreading, but also the symbolic energy of the co-ordinates of urban space concentrates at these points.
 |
| Photo © Courtesy of Park Young Chea |
Urbanhive; a punched concrete box is an element in the matrix, creating urban landscape and consequently making a relation between the place and the city.
 |
| Photo © Courtesy of Park Young Chea |
Purity of concrete with monolithic simplicity catches the floating city for a moment, exposing the architectural structure and reversing the curtain wall (a skin wrapping a space).
 |
| Photo © Courtesy of Park Young Chea |

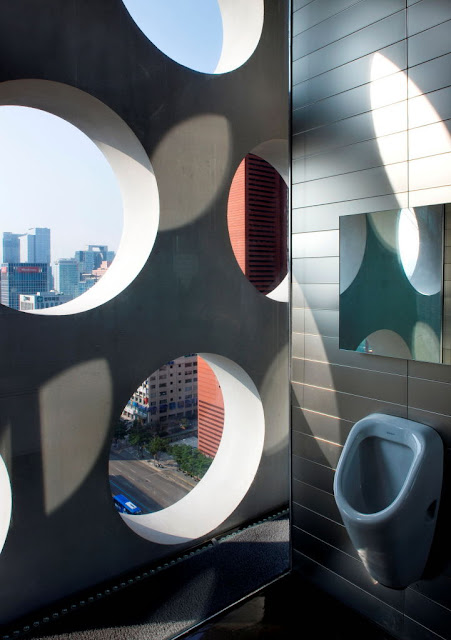

The holes in the skin are designed to be a method of looking at the city from the space, an architecture that can also be enjoyed from the city.
 |
| Photo © Courtesy of Park Young Chea |
 |
| Photo © Courtesy of Park Young Chea |
Looking at the landscape of a city from a sequence of framed view enables us to discover new meaning of daily life.
 |
| Photo © Courtesy of Park Young Chea |
The transparent glass screen, separated from structural holes, is only to maintain the internal conditions, not to serve as a window.
 |
| Photo © Courtesy of Park Young Chea |
The circular cell placed diagonally reduces weight of a rectangular tube, reinforced concrete structure.
The cast are made of P.O steel using a laser cutting machine and packed with high strength high flow concrete.
 |
| Photo © Courtesy of Park Young Chea |
Exposed concrete is not only an external material creating an architectural façade, but it can also be the finishing material for interiors.
Interiors identified with exteriors blur the line between in and out.
Although it is a multi storied building, there is not an entrance hall or lobby.
A point where a building meets a city, it introduces a series of new spaces; voids and massing.
The open space spreading in and out of the building is a public space.
People can be directly connected to their own space form an urban road.
 |
| Photo © Courtesy of Park Young Chea |
The corridor of each floor is open to the outside as if an urban road is extended.
The subway is linked from B2 floor and its entrance is covered as a part of Urbanhive.
 |
| Photo © Courtesy of Park Young Chea |
 |
| Photo © Courtesy of Park Young Chea |
 |
| Photo © Courtesy of Park Young Chea |
 |
| Honeycomb joint design--drawing Courtesy of Kim In Cheurl |
 |
| concept--drawing Courtesy of Kim In Cheurl |
 |
| site plan--drawing Courtesy of Kim In Cheurl |
 |

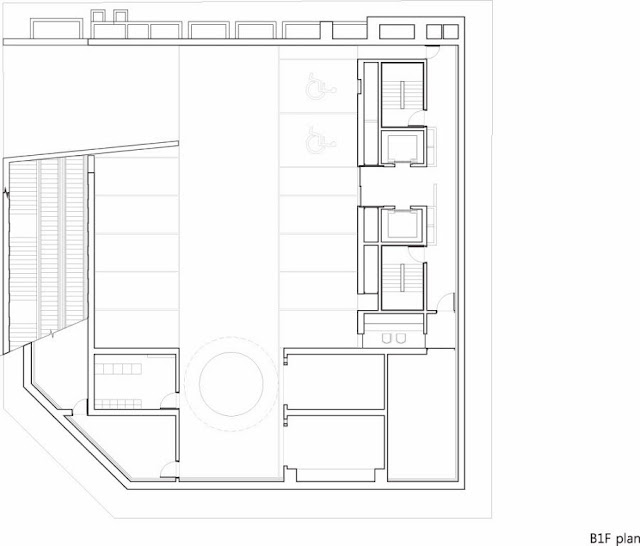

| B1 floor plan--drawing Courtesy of Kim In Cheurl |
 |

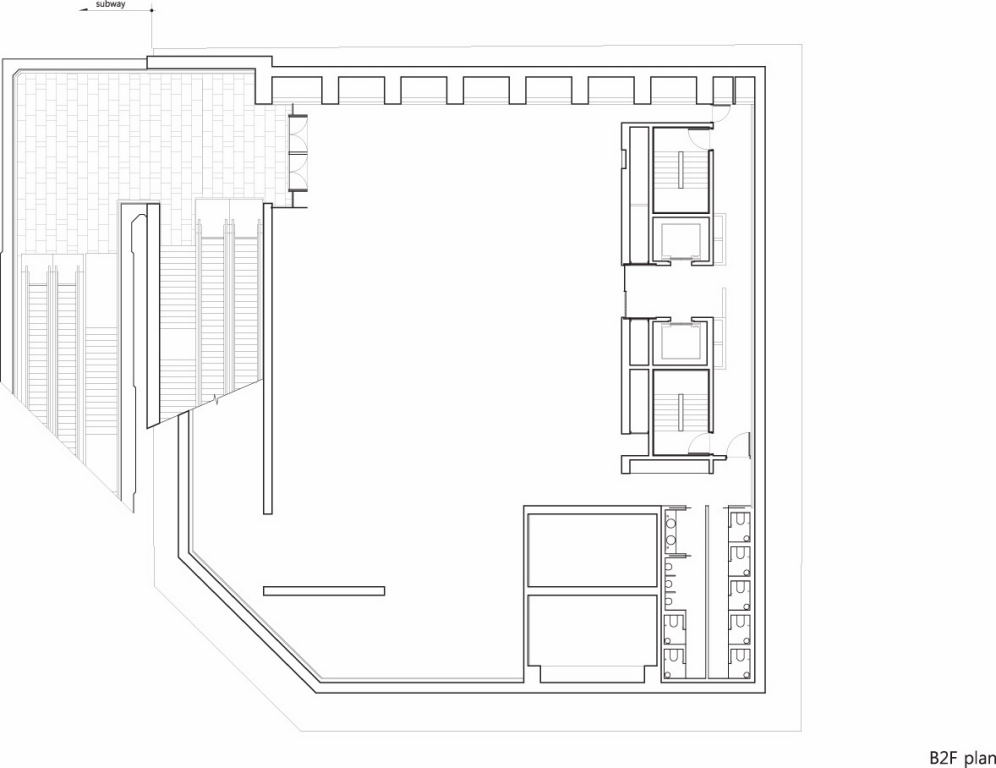

| B2 floor plan--drawing Courtesy of Kim In Cheurl |
 |
| B3 floor plan--drawing Courtesy of Kim In Cheurl |
 |
| B4 floor plan--drawing Courtesy of Kim In Cheurl |
 |
| Typical floor plan--drawing Courtesy of Kim In Cheurl |
 |
| 17 floor plan--drawing Courtesy of Kim In Cheurl |
 |

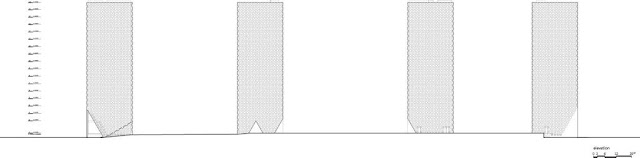

| elevations--drawing Courtesy of Kim In Cheurl |
 |
| section a-a--drawing Courtesy of Kim In Cheurl |
 |
| section e-e--drawing Courtesy of Kim In Cheurl |
 |
| section f-f--drawing Courtesy of Kim In Cheurl |
 |

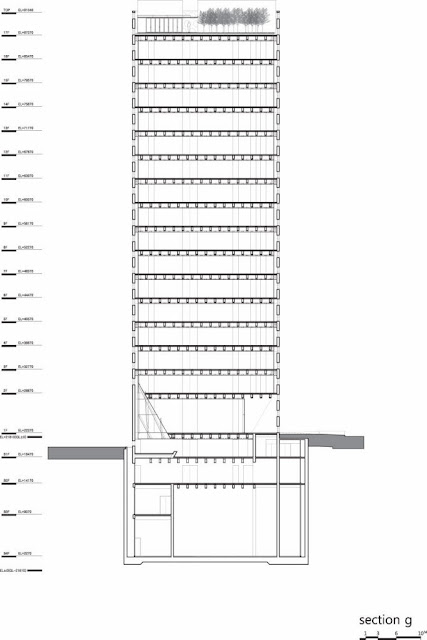

| section g-g--drawing Courtesy of Kim In Cheurl |
 |

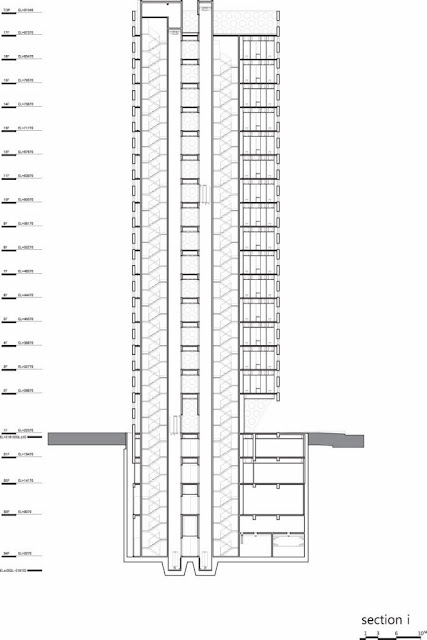

| section i-i--drawing Courtesy of Kim In Cheurl |
The people
Architect: Kim In Cheurl
Location: Seoul, South Korea
Photography: © Park Young Chea
