Hye Ro Hun : By IROJE KHM Architects

Gwangju, Jeonnanam-do, South Korea
IROJE KHM Architects
Post By:Kitticoon Poopong
Photo © Courtesy of JongOh Kim

The house in urban nature
This site is located in borderline between city and mountain. The view of the front side that is the east-side is clearing up, so the urban landscape of downtown Gwangju is seen. There are mountains by the rear-side as a nature and view.
Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

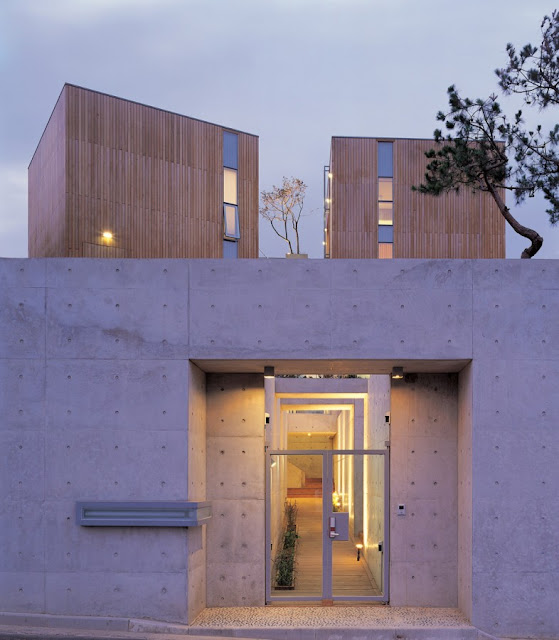

Dramatic access way from gate to entrance
By opening transparent gate door, it starts to begin access into the house, along the long walkway where looks like architectural canyon.
After the penetration through under space of the upper bridge-corridor, it comes to reach the inner court that is attached to entrance.
Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Two boxes on floating land
Two wooden boxes which are consisted of duplex room are laid on landscaped architectural mass which contain living room and dining room. The one box contains master bed and study room and another box is consisted of two bedrooms and study rooms for two daughters.
Photo © Courtesy of JongOh Kim
Photo © Courtesy of JongOh Kim

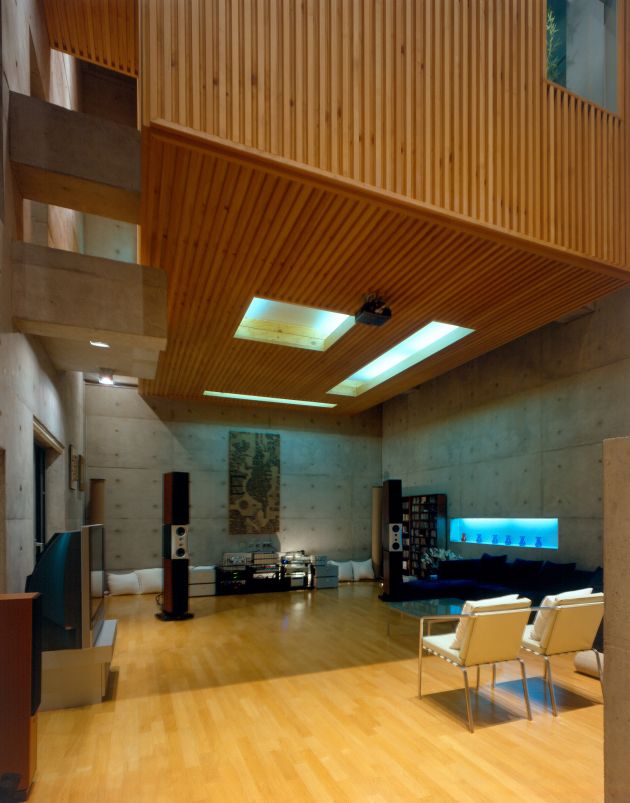

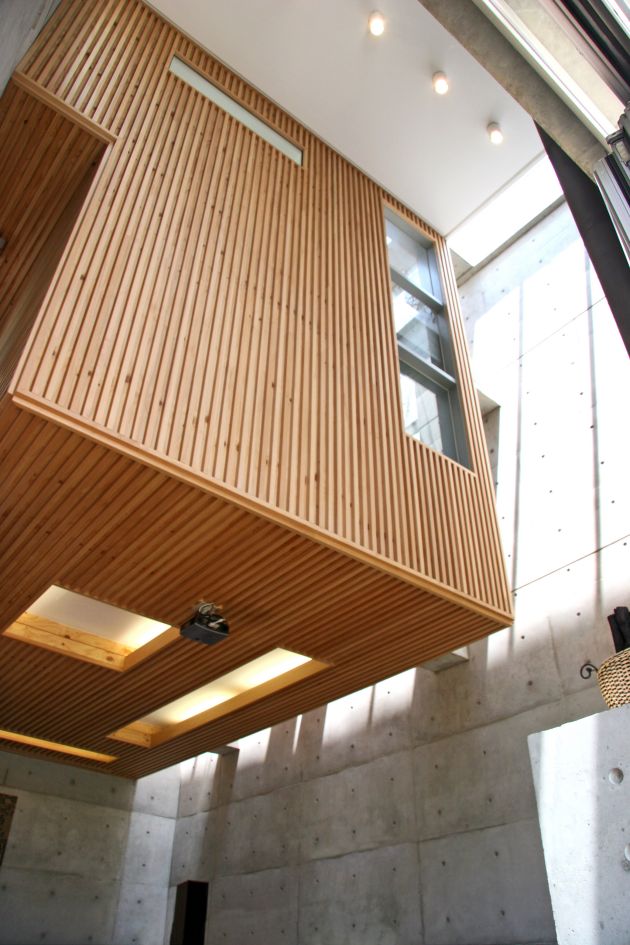

Floating garden over the living room
- Special Space and Light of ‘Box inside Box’
Over the living room where has dynamic space in 9M high, double height master bed-mass with bamboo garden is floating…Through the top light of the roof, moving sunlight vary the atmosphere of the inside space of living room all day long.
Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim
Floating roads
Horizontal or vertical ways which are indoor or outdoor, all the ways inside of this house circulate itself continuosly each other with the dramatic sequence of the various space.
Photo © Courtesy of JongOh Kim
Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim

Photo © Courtesy of JongOh Kim
site plan--drawing Courtesy of IROJE KHM Architects

basement floor plan--drawing Courtesy of IROJE KHM Architects

first floor plan--drawing Courtesy of IROJE KHM Architects

third floor plan--drawing Courtesy of IROJE KHM Architects

roof plan--drawing Courtesy of IROJE KHM Architects

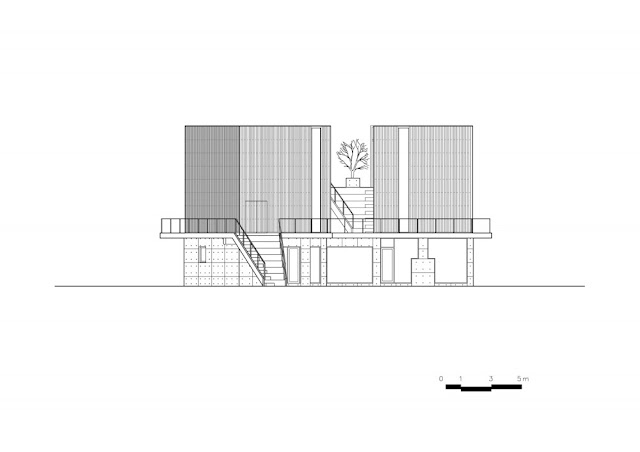

elevation 01--drawing Courtesy of IROJE KHM Architects

elevation 02--drawing Courtesy of IROJE KHM Architects

elevation 03--drawing Courtesy of IROJE KHM Architects

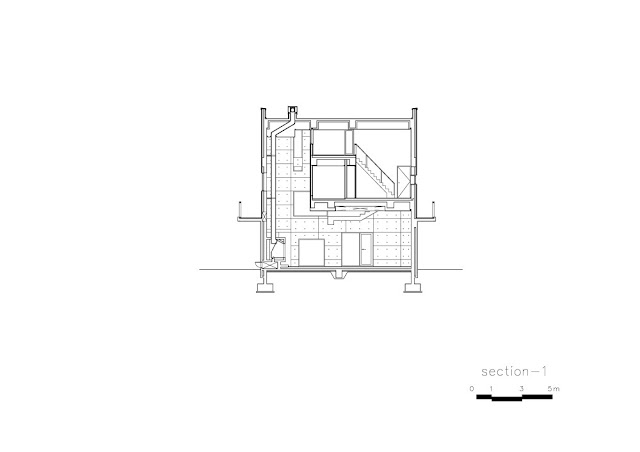

section 01--drawing Courtesy of IROJE KHM Architects

section 02--drawing Courtesy of IROJE KHM Architects

section 03--drawing Courtesy of IROJE KHM Architects
The people
Architect: HyoMan Kim – IROJE KHM Architects
Location: Gwangju, Jeonnanam-do, South Korea
Design team: SuMi Jung
Structure : Concrete rahmen
Exterior finishing : Exposed concrete, Red cendar
Interior finishing : Exposed concrete, Lacquer , Plywood
Site area: 594 sqm
Bldg. area: 168.63 sqm
Gross floor area: 269.07 sqm
Photographer: JongOh Kim
/
