Ingleside Branch Library : By Fougeron + Group 4 Architecture

San Francisco, United States
Fougeron Architecture + Group 4 Architecture
Post By:Kitticoon Poopong

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

This design for this branch library won a national competition held by the San Francisco Public Library in 2002 and construction was completed in September 2009.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Located on an Ocean Avenue corner lot, the design consists of a main reading room, children’s reading room, community room, staff support space and an outdoor garden. Adhering to the urban grid, the L-shaped scheme allows the main reading room and community room volumes to flank and define a central courtyard. The exterior has two major architectural elements: an egg-shaped room and the high canopy roof.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

The most striking element of the front façade, positioned prominently at the corner, is an egg-shaped children’s reading room with a large, bench-seat window that puts its user’s activities on display and encourages use of the library by younger patrons. The children’s room is capped by a high canopy roof, extending over the entry and the lower community room volume along Ocean Avenue.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

This roof strengthens the civic presence of the one-story structure, given the context of taller adjacent buildings. Its sky-blue underside is up-lit, providing unobtrusive security lighting to the entry and sidewalk below, while the height of the canopy is designed to optimize future photovoltaic panels.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Inside, the spaces are designed to fuse historic interpretations of libraries as “temples of knowledge” with more common associations of books with the marketplace popularized by Borders and the like. In the main reading room, floor to ceiling books line the walls; regular circulation fills the lower shelves, while shelving above seven feet are filled with old books and artifacts donated by members of the community. The sloped ceiling of the space is capped with giant skylights coaxing sunlight deep into the room. Facing the courtyard, mahogany-clad carrels offer quite, intimate spaces to read and relax. Benches are built into the glass edges creating a simple and elegant relationship between courtyard and interior spaces.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Most importantly, this new branch library facilitates a central gathering space and enhances access to important resources for the neighborhood, while playing an essential role in the revitalization of Ocean Avenue. The robust, light-filled, and sustainable architectural design highlights the virtues and aspirations of this community: valuing the accessibility of knowledge and education to everyone.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Sustainable Features:
High roof canopy:

The double roof along Ocean Avenue effectively shields the south-facing program room volume below from excess heat gain. Its orientation and high position is designed and intended to house future photovoltaic panels.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Courtyard:

The courtyard is strategically located adjacent to a future playground for greater aggregate outdoor space to be enjoyed by everyone in the community. The building flanks the courtyard, shielding it from street noise and prevailing winds. Also, native landscaping is used for community education as well as reduced irrigation needs.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Natural daylight:

The main reading room is flooded with ample natural light primarily from three large south-facing light monitors. The interior ceiling is precisely sculpted and sloped for maximum admission of sunlight with even distribution. Overhangs at the reading carrels as well as at the street facing windows are calculated to shade interior spaces from excessive heat gain in the summer while allowing natural light to penetrate deep into the interior space during the winter. These architectural features reduce the need for artificial lighting and raise the comfort level of patrons.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Efficient artificial lighting:

The required artificial lighting primarily uses high efficiency, dimmable, T-5 fluorescent tubes. The lighting is directed upward to the light colored ceiling, which reflects the light back down for better color rendition. Commonly found incandescent recessed cans are eliminated and the dimmable ballasts allow staff to adjust light levels as necessary for greater energy savings.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Heating system:

Hydronic radiant baseboard heaters allow for the elimination of ductwork. and are typically hidden within the bookshelf kicks. The energy usage is significantly lower and more efficient than the traditional forced air system. The quality of heat is also more uniform and comfortable for the patrons.

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Photo © Courtesy of Joe Fletcher

Click above image to view slideshow

Operable glazing for ventilation:

The long L-shaped volumes allow cross ventilation from the streets to the courtyard through operable glazing. Also, within the main reading room, operable glazing is located low while automatic louvers are located high within the skylight volume to facilitate stack ventilation. Therefore, the naturally occurring pressure differential is utilized to expel excess heat without the need for air conditioning.

site plan--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

floor plan--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

Low VOC & sustainable finishes:

Every effort has been made to ensure the highest interior air quality and responsible use of finish materials. The interior paint and other interior finishes are all specified as low VOC. Wall and ceiling insulation is formaldehyde free denim, and floor finishes are linoleum.

lighting & ventilation section diagram--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

building massing--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

natural lighting plan--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

patron seating--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

program sketch--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

staff function diagram--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

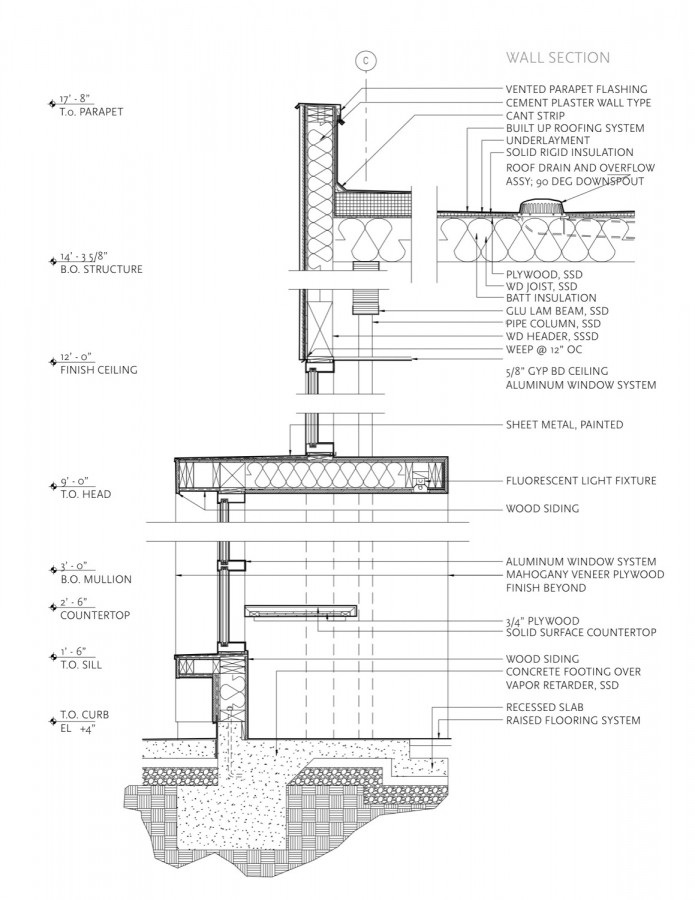

wall detail section--drawing © Courtesy of Fougeron Architecture

Click above image to view slideshow

The People Owner: San Francisco Public Library Architect: Fougeron Architecture 431 Tehama Street, Suite 1 San Francisco, CA, 94103 Personnel in architect's firm who should receive special credit: Partner in Charge: Anne Fougeron (FAIA) Project Manager: Todd Aranaz Design Team: Ryan Jang, Bassel Samaha (AIA), Michael Pierry (AIA), Vivian Dwyer (AIA) Associate architect(s):  Group4 Architecture Wayne Gehrke, David Schnee, Prasasti Arief 211 Linden Ave South San Francisco, CA, 94080 g4arch.com Engineer(s): Mechanical: G.M. Lim Associates gmla.com Structural: Ingraham Dejesse Associates, inc. ida-se.com Electrical: Pola Design + Engineering, inc. Civil: Telamon Engineering, inc. telamoninc.com Consultant(s): Landscape: Patricia O’Brien Landscape Architecture 351 9th St San Francisco, Ca Technology: Smith, Fause & McDonald, inc. sfmi.com General contractor:  CLW Builders 1329 Noriega St San Francisco, CA 94122 Construction Manager: San Francisco Department of Public Works Photographer(s): Joe Fletcher 415.216.7948 Renderer(s): Zendarski Studios CAD system, project management, or other software used: Autodesk AutoCAD 2008

The Products Exterior cladding: Masonry: Casa Dolce Casa Neutra Metal/glass curtainwall: Kawneer Aluminum Powder Coated White Wood: Mahogony EIFS, ACM, or other: Painted Stucco Roofing: Built-up roofing: Jeffco Built-Up Bituminous Metal: Linden 05300 Metal Decking Windows: Aluminum: AHC Glass 08400 & 08520 Glazing: Glass: Kawneer 1” Vision, 1” Textures & Metal Panel Spandrel Skylights: Acralight Custom Skylights Doors: Metal doors: Kawneer Aluminum Powder Coated White Sliding doors: Hafele Top-Hung Junior Hardware: Locksets: Schlage Hinges: BLUM B71-658 Pulls: Schlage L-Series Cabinet hardware: Armkea C-Pull 4” Interior finishes: Acoustical ceilings: Fireline DXF2924, DXF429N, DXF229 Suspension grid: Rulon Panel Grille Suspended Wood System Paints and stains: Dunn Edwards, Pantone, Benjamin Moore Wallcoverings: Georgia-Pacific DensGlass Ultra Gypsum Plastic laminate: Dupont Corian Regular & Illumination Series Special surfacing: Abet Laminati 285, 286, 868, 909 Floor and wall tile (cite where used): Dal-Tile Mosaic (Floor) & Semi-Gloss (Wall) – Bathrooms Resilient flooring: Forbo Marmoleum Fresco 3860 Raised flooring: ASM FS-Series & S-Series Furnishings: Office furniture: 3M V-Series Tabletop, Agati Boalt Double Carrel, Herman Miller Meridien Pedestal, Bernhardt Strada Chairs: Herman Miller Eames Molded Ply, Midlands Kestrel Chair, Fritz Hansen Series 7, HM Limerick Stacking Chair Tables: Agati Cerino & Roland Table, Midlands Kestrel Leg-Round, Thonet Primaries, ICF Quickly Table, Baker M Collection Other furniture (use additional sheet if necessary): Midlands Kestrel Perimeter Chair, David Edwards Serengeti Lounge, Reimers Internet Series Task Chair, Brayton Enea Table Lighting: Interior ambient lighting: Metalux Fluorescents, NEORAY TS Downlights: Cooper Lighting Lumark Falcon Task lighting: Birchwood Lighting WP System, LightCorp LED Sprout Plumbing: Haws 1011 Water Fountain, Sloan ETF-80 Faucets, American Standard sinks & toilets
