Särö, Kungsbacka, Sweden
Wingårdh Arkitektkontor
Post By:Kitticoon Poopong
 |
Photo © Courtesy of Wingardh Click above image to view slideshow |
I’ve been wanting to design this house for a long time. The obvious design, with a series of rooms arranged along a line. My client wanted to be sure that it was possible to construct a good house on the site before he went ahead and bought it. This meant that time was critical one autumn day in 2003.
 |
Photo © Courtesy of Wingardh Click above image to view slideshow |
The first design is very close to the real thing. The house’s bulk extends over the whole of the permitted building width and has been placed as far back on the site as possible. A long, narrow pool has been built at the end of the site closest to the sea.
 |
Photo © Courtesy of Wingardh Click above image to view slideshow |
The house thrusts into the slope in sections, while the pool is lifted and framed by two
concrete walls. Villa Ann has an extremely simple plan. It has three rooms and a kitchen. These consist of a living room on the ground floor and two separate bedrooms upstairs. All generously proportioned.
 |
Photo © Courtesy of Wingardh
Click above image to view slideshow |
VillAnn is extremely oriented towards the sea in the west. All that separates the outside from the inside is a whole, thin glass membrane. (Well, comparatively thin – it consists of a 10 mm outer
tempered glass pane that didn’t even shake when hurricane Gudrun struck.) The house is made of concrete that has been cast on site. Thick sections made it possible to vibrate the concrete between the reinforcement bars to the smooth form plywood. The contrast is maximal – thick and thin, closed and open, man-made and natural.
 |
Photo © Courtesy of Wingardh
Click above image to view slideshow |
Brushed and lightly white-glazed
Douglas fir dominates the floors, joinery and tables inside the house. The floor boards are 30 centimetres wide and as much as 14 metres long. The pool has been cast in black concrete and the water runs over the edge on the western side. A steelframe with a fabric covering stands above a long, concrete table on the greying wooden decking, providing welcome shade.
 |
situation plan--drawing © Courtesy of Wingardh Click above image to view slideshow |
The grounds in front of the house facing the sea have been designed by NOD. Zig-zagging steelgirders define the outline of the parterre, which is suggestive of exaggerated waves of sand. There are different biotopes on each side. The parterre screens the inside of the house from the public road, which, via an easement, rather unfortunately separates the house from the sea.
 |
first floor plan--drawing © Courtesy of Wingardh Click above image to view slideshow |
 |

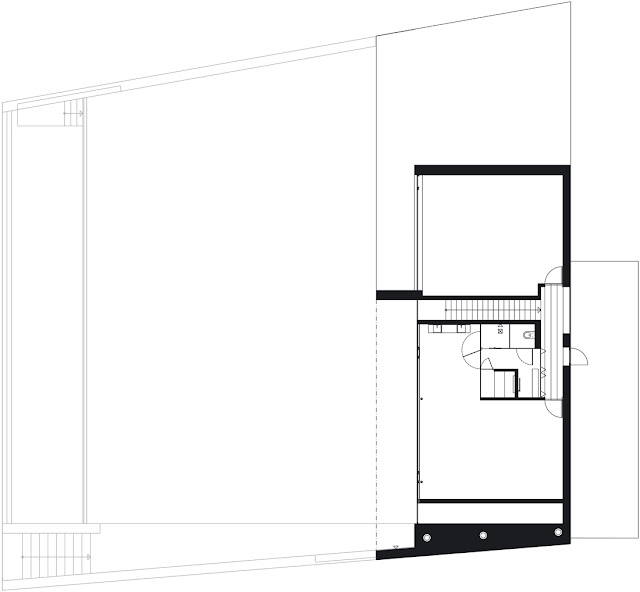

second floor plan--drawing © Courtesy of Wingardh Click above image to view slideshow |
 |
section--drawing © Courtesy of Wingardh Click above image to view slideshow |
The people
Architects: Wingårdh Arkitektkontor
Location: Särö, Kungsbacka, Sweden
Architects in charge: Gert Wingårdh, Joakim Lyth, Danuta Nielsen, Karin Wingårdh
Project Year: 2004-2005
Client: Private
Construction: Elu Konsult AB, Göteborg, Paul Palmqvist
Landscape: NOD, Natur Orienterad Design
Interior Wood: Tranekaer-Teknik, Denmark
Constructed Area: 346 sqm
Photographer: Wingardh
