15-152, Hyehwa-dong, Jongro-gu, Seoul, South Korea
IROJE KHM Architects
Post By:Kitticoon Poopong
 |
| Photo © Courtesy of JongOh Kim |
Reclamation of the site & Confrontation of modern and tradition.
The site is located in the outer Bukchon nearby the designated cultural properties of Seoul city like rampart of Seoul. Hyehwamun, Kim Sang Hyeop's House.
 |
| Photo © Courtesy of JongOh Kim |
Many
Korean-style houses are existed till now, but remained houses are removed at that with the housing development prevalence of multi-family house last year. So it is one of the villages that are in progress of modernization (?) and Jo Rin Hun is same case that is pressed with the high-storied neighborhood. It was a distressed situation to unavoidably remove the existing Korean traditional house as a position of culture destroyer.
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
Inheritance of spatial tradition & Perpendicular residence/city as a ‘village’.
The character of history and place of the Korean-style house inherited spatially by composing the 'garden' of existing house for 'garden' of Jo Rin Hun. This garden functions as a spatial element that satisfies the right of sphere and ownership with the recognition that each of the household living in this house is the owner of each separate house. Many
detached house composed vertically with outside-stair as a passage and the small outside space will be a 'city windpipe' that connects that city and architecture strongly.
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
Multi-function of translucent skin & Mass being un-architecturally.
By incoming the neighbored landscape with the expended metal translucent board, the light, wind, sound through the small vertical courtyard surrounded by each houses are effective and forming introverted calm spatial environment. It is intended to function hiding neighborhood, filtering surrounding landscape, control of the light by me lid of the outer cover adjoins neighborhood with translucent skin.
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
Indistinct landscape of the village, clearly visible shape of the Korean-style house, the whole views of Seoul with Namsan tower and the festive night views were the landscape program of Jo Rin Hun. The city and architecture are endowed with strong mutual response and finally this mass become to carry the un-architectural property of matter of transparence introversively, translucence extrorsely.
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
It is intended to feel Jo Rin Hun, which is vertical and huge mass comparatively, as 'un-architectural' property of matter to harmonize with the horizontal stable landscape formed by the remaining Korean-style houses and to form a new city context that corresponds to the change. It lost by the shaded portion of road, right to enjoy sunshine, cultural property protection. By indoor planting to the remaining mass, It could be recognized as an ecological mass, as well as, the whole could recognized as if translucent/opaque un-architectural object are covered with expended metal and intended to grant a formable sensitivity that harmonized with the image of Korean style house to the structure of skin.
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
Introduction of nomadic program and nature & Reduction of construction expenses.
I aimed at nature-friendship by introducing the nature positively and aimed lies latent a small and abundant spatial story by residence together with the large and small houses.
By openly establish the secret private life programs, that is, concealable action apparatus like shower, bathtub, close-stool, washstand, he/she could liberate from restraint of secrecy by him/herself and could present action of life. With the preparation to feel the instinctive pleasure in the nature that is an instinctive environment, all the action of him/herself become a sight and concerned object. So it was an interesting work to plan the 'place' where exist a history and story to aware of the vestige of life always.
 |
| Photo © Courtesy of JongOh Kim |
 |
| Photo © Courtesy of JongOh Kim |
Such program is small, but could be said it is large, because there are a lot of contributions that sensed as large space and form a various/dramatic space, reduction of construction expenses.
The construction expense is a mountain to go over. It was effective for cost administration to minimize the expenses with the effort by using cheap materials like concrete floor, wall finishing, dryvit excluded finishing materials, prefabricate sandwich panel and simplification of process.
Light-house of life.
I expect Jo Rin Hun, un-architectural architecture, to be a 'light house of city' that always lightens the neighborhood and to be a place where record and preserve the historic character of the site.
Description from the Architects:
 |
| site plan--drawing © Courtesy of IROJE KHM Architects |
 |
| basement floor plan--drawing © Courtesy of IROJE KHM Architects |
 |
| 1st floor plan--drawing © Courtesy of IROJE KHM Architects |
 |
| 2nd floor plan--drawing © Courtesy of IROJE KHM Architects |
 |
| 3rd floor plan--drawing © Courtesy of IROJE KHM Architects |
 |
| 4th floor plan--drawing © Courtesy of IROJE KHM Architects |
 |
| 5th floor plan--drawing © Courtesy of IROJE KHM Architects |
 |
| roof plans--drawing © Courtesy of IROJE KHM Architects |
 |

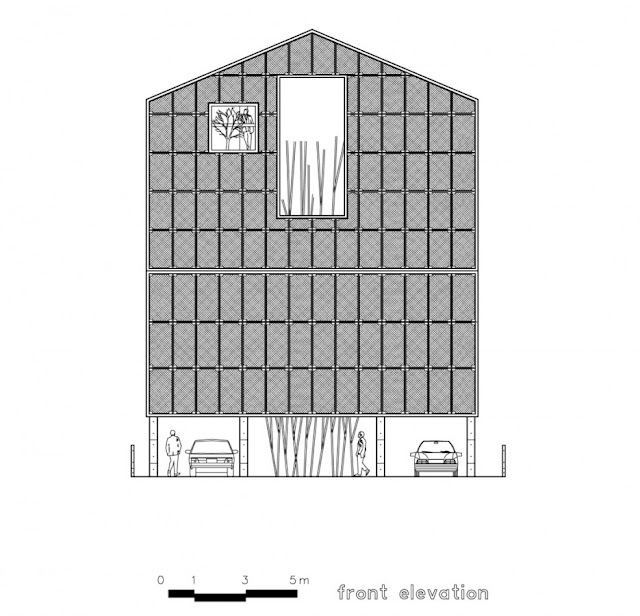

| front elevation--drawing © Courtesy of IROJE KHM Architects |
 |
| rear elevation--drawing © Courtesy of IROJE KHM Architects |
 |
| right side elevation--drawing © Courtesy of IROJE KHM Architects |
 |
| section 1--drawing © Courtesy of IROJE KHM Architects |
 |

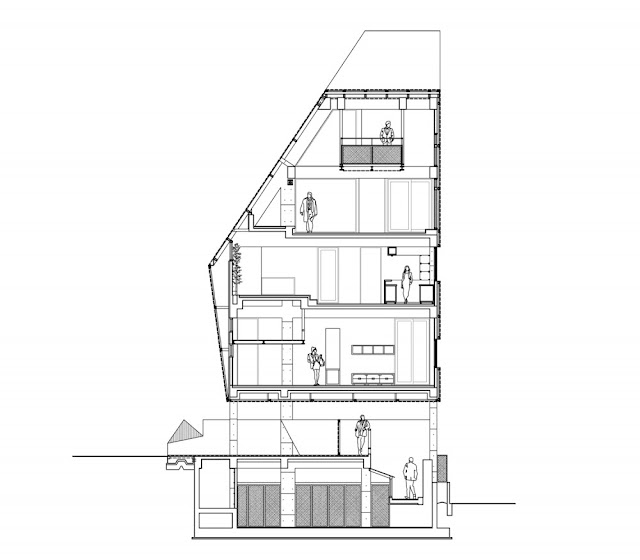

| section 2--drawing © Courtesy of IROJE KHM Architects |
 |
| section 3--drawing © Courtesy of IROJE KHM Architects |
 |
| section 4--drawing © Courtesy of IROJE KHM Architects |
 |
| section 6--drawing © Courtesy of IROJE KHM Architects |
 |
| section 7--drawing © Courtesy of IROJE KHM Architects |
Project Data
Project name: Jo Rin Hun House
Location: 15-152, Hyehwa-dong, Jongro-gu, Seoul, South Korea
Program: Multi-family house
Site Area: 169.97 m2
Building Area: 100.28 m2
Gross Floor Area: 447.85 m2
Year Completion: 2003
Structure: Concrete rahmen
Exterior finishing: Exposed concrete, Expanded metal, Dryvit
Interior finishing: Exposed concrete, Gypsum board/V.P.
The people
Architects: IROJE KHM Architects
Principal Designer: HyoMan Kim
Design Team: SuMi Jung, MiYeong Park
Structure Designer: YeongRok Sin
Contractor: Yeong Kim
Photographs: © JongOh Kim
