Muiderweg, Almere, Netherlands
70F Architecture
Post By:Kitticoon Poopong
 |
| Photo © Courtesy of Luuk Kramer |
The city of Almere has a
sheep population of about 80 sheep. The sheep are mobilized to keep the powerful weed “acanthus” or “bears-breech” that grows in the “vroege vogel” - forest and “kromsloot” - park in Almere under control. To centralize and house this population, a sheep stable was needed.
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
The stable is designed with an a-symmetrical homogeneous cross-section. The part of the building where the sheep reside is relatively low; the high part is situated above the (public) pathway and the hay storage section, making it possible to store a maximum amount of hay.
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
This shape also creates a natural flow for the air inside the building, which is refreshed by two slits at the foot of each long side of the building.
The detailing of the corner of the building, where the long façade ends and the gable starts, is extremely important for the overall experience of the architecture of this building. It emphasises the cross sectional shape of the building, and finishes the long façade of the building, which starts as a façade and slowly becomes roof.
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |

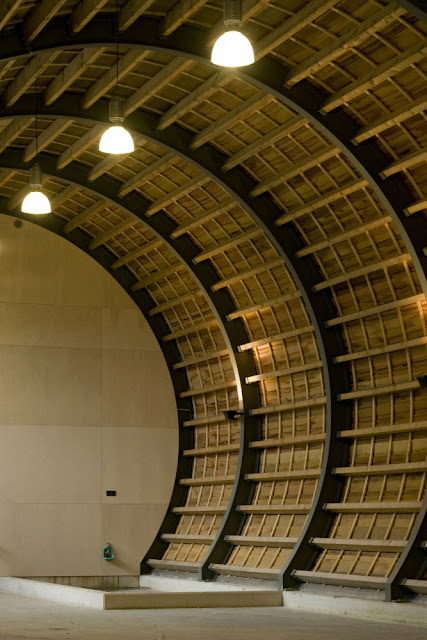

The construction (pine) and cladding (Western Red Cedar) are made of wood. Only the curved girders are made of steel. This was done to emphasise the tube-like shape of the interior, which would have been less strong using twice as high wooden girders.
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |

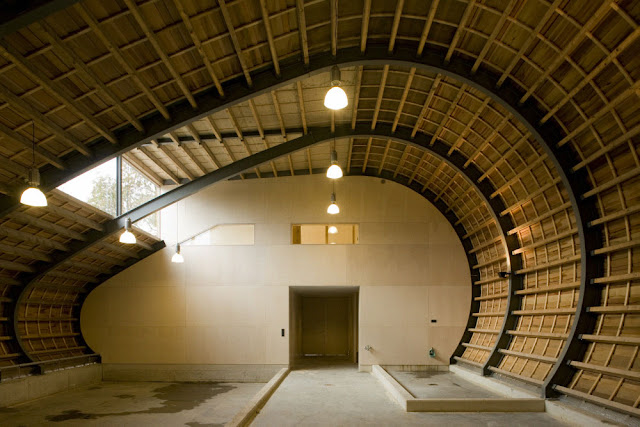

The tube has three strategically placed daylight openings, of which one is close to the floor level, so people can look inside even when the building is closed. All vertical walls in the stable and office are clad with beech plywood.
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
 |
| Photo © Courtesy of Luuk Kramer |
The stable is designed to make it possible for the public or school classes to visit the building and experience the keeping of sheep up close. At one end of the building, on the second floor, a room for the shepherd and a small office is realised. There are sleeping facilities for the shepherd, who has to stay over night in case any sheep are lambing. Work in and around the stable will be done by, amongst others, people who live with a mental social or psychiatric disability, supervised by the shepherd.
 |
| Photo © Courtesy of Luuk Kramer |
Apart from the public function, the Muslim community will be able to buy the lambs they need for yearly ritual purposes.
Description from the Architects:
 |
| location plan--drawing © Courtesy of 70F Architecture |
 |
| site plan--drawing © Courtesy of 70F Architecture |
 |
| ground floor plan--drawing © Courtesy of 70F Architecture |
 |
| first floor plan--drawing © Courtesy of 70F Architecture |
 |
| elevations--drawing © Courtesy of 70F Architecture |
 |
| sections--drawing © Courtesy of 70F Architecture |
Project Data
Project name: Sheep Stable
Location: Muiderweg 8, 1351 GJ, Almere, Netherlands
Program: Sheep stable, hay storage space, office, shepherd's room
Area: Gross Floor Area: 400 m2
Year: Project start: 2003
Completion: 2007
Building costs: € 300,000 (US $465.693)
The people
Architects: 70F Architecture
Design Team: Bas ten Brinke (Project Leader) and Carina Nilsson MScA (Project Architect)
Commissioner: the City of Almere, the Netherlands, DMO NME, Hans Warrink
Contractor: Reimert Bouw- en Infra, Almere, the Netherlands, Ben van Nieuwenhuizen
Photographs: Luuk Kramer
